Product Overview

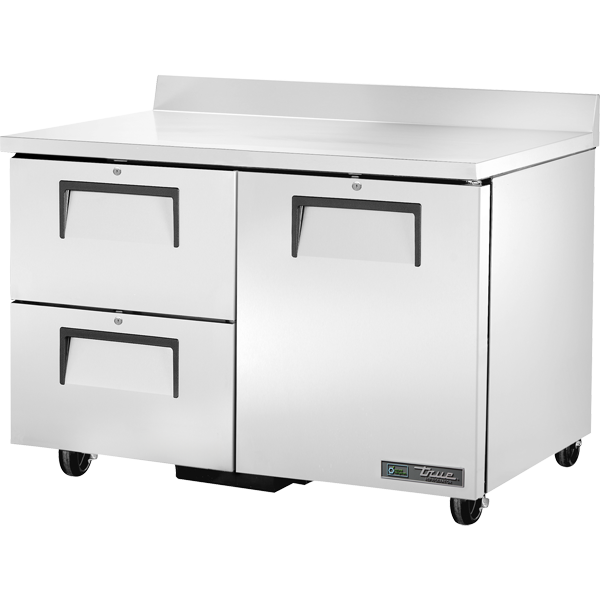

The True TWT-48D-2-HC is a 48-3/8" worktop unit that turns refrigerated storage into usable prep surface. The self-contained, factory-balanced capillary tube system runs on R290 hydrocarbon refrigerant — zero ozone depletion potential and a global warming potential of 0.02 — and holds 33°F to 38°F throughout the cabinet.
The drawer system is where this unit earns its place on a line. Each drawer rolls on heavy-duty slides rated for constant service and seals against a magnetic gasket, so cold air stays in the cabinet during a rush instead of spilling out every time a cook reaches for product.
The exterior is stainless steel on the front, top and ends with a GalFan-coated steel back, and the interior is a clear-coated aluminum liner with a stainless steel floor and coved corners. The condensing unit is reached from the back on a slide-out mount, so routine maintenance does not mean pulling the cabinet out of the line.
Product Details
- True® 48-3/8" worktop refrigerator
- Reinforced top doubles as a work surface
- Maintains 33°F to 38°F
- R290 hydrocarbon refrigerant — zero ODP, 0.02 GWP
- Self-contained, factory-engineered capillary tube refrigeration system
- ECM evaporator and condenser fan motors for reduced energy draw
- Epoxy-coated evaporator resists corrosion
- Condensing unit accessed from the back and slides out for service
- Stainless steel front, top and ends; GalFan-coated steel back
- Heavy-duty drawer slides rated for constant commercial service
- Magnetic drawer gaskets seal cold air in the cabinet
- Clear-coated aluminum interior liner, stainless steel floor with coved corners
- High-density polyurethane insulation foamed in place (zero ODP, zero GWP)
- One-piece magnetic gaskets, removable without tools
- Each drawer holds one full-size 12" L x 18" W x 6" D food box, or one 1/3-size and one 1/2-size pan (sold separately)
- Factory pre-wired with cord and NEMA 5-15P plug
Dimensions & Utilities
| Specification |
Detail |
| Cabinet Dimensions (W x D x H) |
48-3/8" W x 30-1/8" D x 33-3/8" H |
| Doors & Drawers |
1 solid door and 2 drawers |
| Pan Capacity |
Each drawer holds one full-size 12" L x 18" W x 6" D food box, or one 1/3-size and one 1/2-size pan (sold separately) |
| Temperature |
33°F to 38°F |
| Electrical |
115V / 60 Hz / 1 Phase |
| Amps |
2.0 amps |
| Plug Type |
NEMA 5-15P (15 amp dedicated outlet recommended) |
| Refrigerant |
R290 Hydrocarbon (zero ODP / 0.02 GWP) |
| Cord Length |
10 ft. |
| Unit Weight |
330 lbs. |
Additional Product Information
-
Approvals & Certifications: Made in USA, cUL, NSF-7 (Open), CE, Natural Refrigerant (R290).
-
Optional Accessories: 220-240V/50-60Hz electrical, 6" standard or seismic/flanged legs, 2-1/2" castors, alternate door hinging, additional shelves and factory-installed digital temperature display are available. Upcharges and lead times may apply.
-
Installation Requirements: Requires a dedicated 15 amp, 115V circuit. Allow clearance at the rear for condensing unit access. Commercial installation only; not intended for home or residential use.
