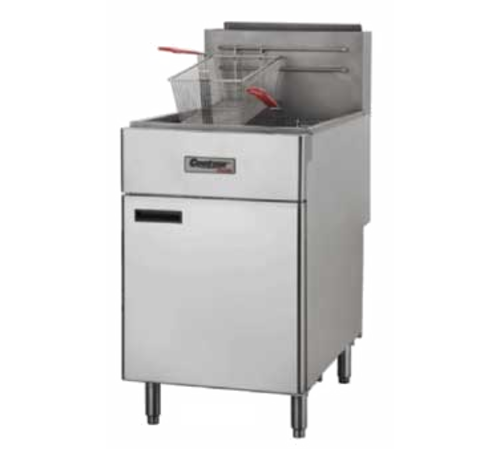

Centaur CGF-5 Floor Standing 5-Tube Gas Fryer - 70 lb. Capacity, 150,000 BTU

The Centaur model CGF-5 is a high-capacity floor-standing tube gas fryer built for maximum fried food volume in busy commercial kitchens. Featuring a large 70-pound oil capacity tank heated by 5 heavy-duty heat exchange tubes producing 150,000 BTU/hr total input, this model is engineered for rapid heat transfer, fast recovery times, and heavy continuous output.

Constructed with a peened all-stainless steel fry tank with smoothed welds, stainless steel front, top ledge, header, and door with integral liners, the CGF-5 stands up to heavy daily commercial use while remaining easy to clean. High-grade G90 galvanized steel side and back panels add structural strength. A wide fry tank cool zone captures food particles below the frying area to preserve oil life and prevent burnt flavors, and a 1-1/4" full port ball-type drain valve ensures swift oil draining.

Operational safety and precision temperature management are delivered by an Invensys 1 millivolt thermostat (200°F to 400°F) and an auto-reset safety high-limit shutoff switch. Premium Invensys/Robertshaw thermostat, gas valve, and hi-limit parts ensure maximum reliability. Standard accessories include two heavy-duty nickel-chrome wire mesh fry baskets with red plastic-coated handles and a double-rod stainless steel basket hanger.

	Specs Sheet

Product Details

• Centaur® floor-standing tube-fired gas fryer
• 70 lb. oil capacity with 5 heat exchange tubes (150,000 Total BTU/hr)
• Peened stainless steel fry tank with smoothed-out welds
• Stainless steel front, top ledge, header, and door with integral liners
• Smooth finish, high-grade G90 galvanized sides and back
• 5 efficient 30,000 BTU heat exchange tubes with high-heat baffles
• Deep cool zone in fry tank captures sediment to extend shortening quality
• 1-1/4" ball-type full port drain valve for rapid draining
• Invensys 1 millivolt thermostat with adjustable range from 200°F to 400°F
• Auto-reset high-limit control shuts down fryer if shortening exceeds safety limits
• Invensys/Robertshaw thermostat, gas valve, and hi-limit safety components
• Includes 2 nickel-chrome wire mesh fry baskets with red plastic-coated handles
• Double rod stainless steel basket hanger and built-in flue deflector
• Welded door magnet and recessed/reversible door handle
• 6-inch adjustable stainless steel legs (casters available)
• cULus Listed and NSF compliant

Dimensions & Utilities

Additional Product Information

• Approvals: cULus Listed and ANSI/NSF 7 Commercial Food Service Certified.
• Warranty: 1 Year Parts and Labor Warranty.
