Product Overview

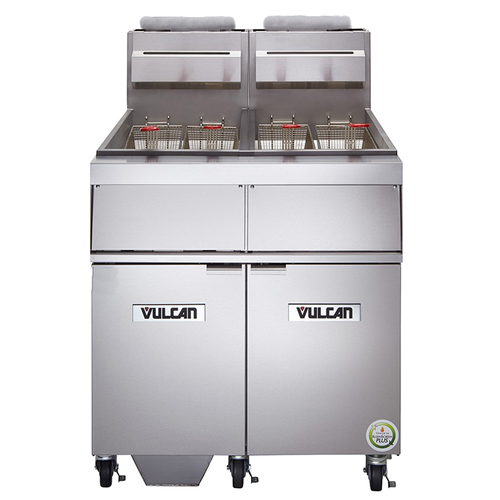

The Vulcan 2GR45MF-1 is a two-vat gas fryer battery with built-in oil filtration. Each vat holds 45-50 lb of oil and runs at 120,000 BTU/hr, for 100 lb of capacity and 240,000 BTU/hr across the battery.
Two vats let a kitchen separate product — fish on one side, fries on the other — without flavor transfer, and the integrated filtration system means oil gets cleaned in place instead of hauled to a cart. On a high volume line that is the difference between filtering every shift and filtering when someone has time.
Both vats are stainless steel with millivolt controls, so the battery needs no external electrical connection to fire. Each has three heat exchanger tubes, twin fry baskets and a 1-1/4" full port ball drain valve. The battery rolls on adjustable casters and carries a 10-year limited tank warranty.
Product Details
- Vulcan® GR series two-vat gas fryer battery with built-in filtration
- Two vats, 45-50 lb oil capacity each — 100 lb total
- 120,000 BTU/hr per vat — 240,000 BTU/hr total
- Built-in oil filtration system
- Millivolt controls — no electrical hookup required to fire
- Stainless steel fry tanks and cabinet
- Three heat exchanger tubes per vat
- Twin fry baskets per vat
- 1-1/4" full port ball drain valve per vat
- Adjustable casters
- Tank brush, clean-out rod and drain extension included
- 10 year limited tank warranty
Dimensions & Utilities
| Specification |
Detail |
| Number of Vats |
2 |
| Oil Capacity per Vat |
45-50 lb |
| Total Oil Capacity |
100 lb |
| BTU per Vat |
120,000 BTU/hr |
| Total Input |
240,000 BTU/hr |
| Filtration |
Built-in |
| Overall Dimensions (W x D x H) |
15-1/2" W x 30-1/4" D x 47-1/8" H |
| Shipping Weight |
215 lb |
| Gas Type |
Natural Gas |
| Electrical |
Millivolt — none required to fire |
| Drain Valve |
1-1/4" full port ball valve per vat |
Additional Product Information
-
Manufacturer: Vulcan (ITW Food Equipment Group)
-
Series: GR
-
Model Number: 2GR45MF-1
-
Specification Sheet: Vulcan factory spec sheet for the GR series
-
Liquid Propane Model: 2GR45MF-2
-
Warranty: 10 year limited tank warranty; one year limited parts and labor
-
Product Photo: Vulcan does not publish a separate web page or photo for the two-vat 2GR45MF battery. The single-vat 1GR45M photo is NOT used here because it would misrepresent a two-vat unit. Request a photo of the two-vat battery from the Vulcan rep.
-
Specification Source: Dimensions, weight, BTU and oil capacity for the two-vat battery taken from a KaTom product listing. Vulcan's factory spec sheet for this series covers the single-vat 1GR45M only and does not publish figures for the two-vat filtration model.
