Vulcan MSA36-101 MSA Series 36" Natural Gas Griddle - Thermostatic, 81,000 BTU

Product Overview

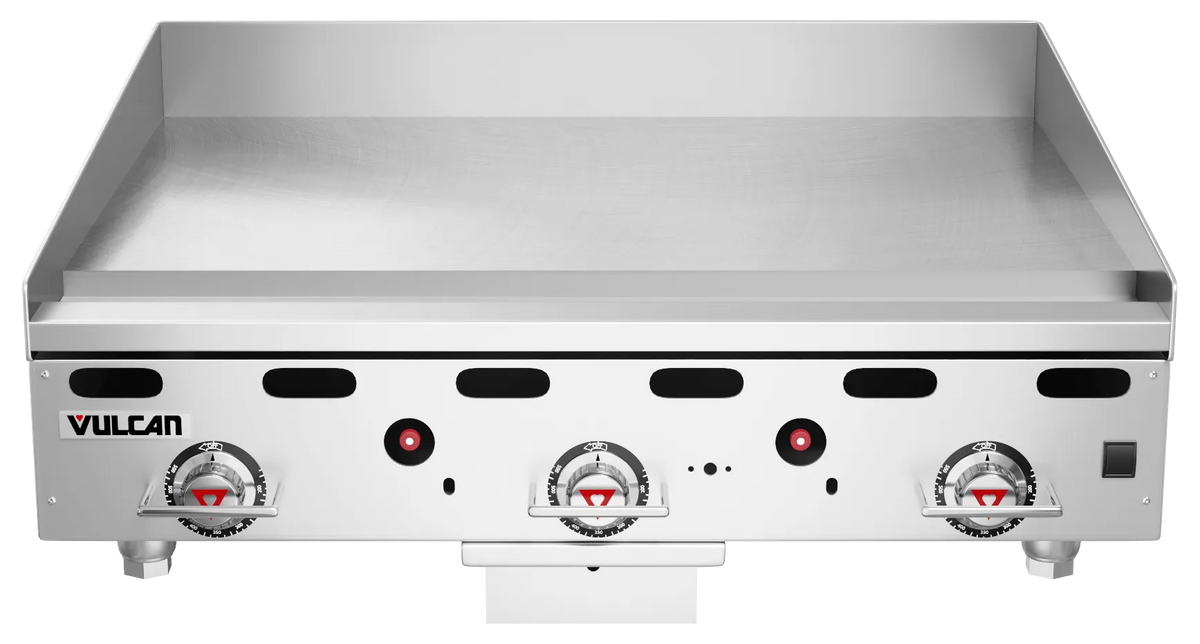

The Vulcan MSA36-101 is a 36" heavy-duty gas griddle from the MSA series, built around a 1" thick polished steel plate and 3 burners rated 27,000 BTU/hr each for 81,000 BTU/hr total.

Temperature is held by embedded snap-action thermostats — one per burner section — so the plate recovers to the set point instead of drifting while a cook works through a rush. That makes it the right choice for eggs, pancakes and anything else where plate temperature decides the result. A supervised pilot safety valve shuts the gas off if the pilot goes out.

The chassis is fully welded stainless and aluminized steel with a cool bull nose front rail, and a large 6-quart stainless grease drawer pulls out from the front. Heavy-duty chromed knob guards protect the thermostat dials on a busy line, and the griddle accepts the Vulcan Clamshell and the optional Rapid Recovery plate.

Product Details

• Vulcan® MSA series 36" heavy-duty gas griddle
• 1" thick polished steel griddle plate
• 3 burners rated 27,000 BTU/hr each — 81,000 BTU/hr total
• Embedded snap-action thermostat per burner section
• Thermostatic range 200°F to 550°F
• Supervised pilot safety valve
• Cool bull nose front rail
• Heavy-duty chromed thermostat knob guards
• Large 6-quart stainless steel grease drawer
• Fully welded stainless and aluminized steel chassis
• Vulcan Clamshell compatible
• Optional Rapid Recovery plate available

Dimensions & Utilities

Additional Product Information

• Manufacturer: Vulcan (ITW Food Equipment Group)
• Series: MSA
• Model Number: MSA36-101
• Specification Sheet: Vulcan factory spec sheet
• Liquid Propane Model: MSA36-102
• Warranty: One year limited parts and labor
• Specification Source: Dimensions, weight and gas input taken from the Vulcan factory specification sheet for this model.
