Product Overview

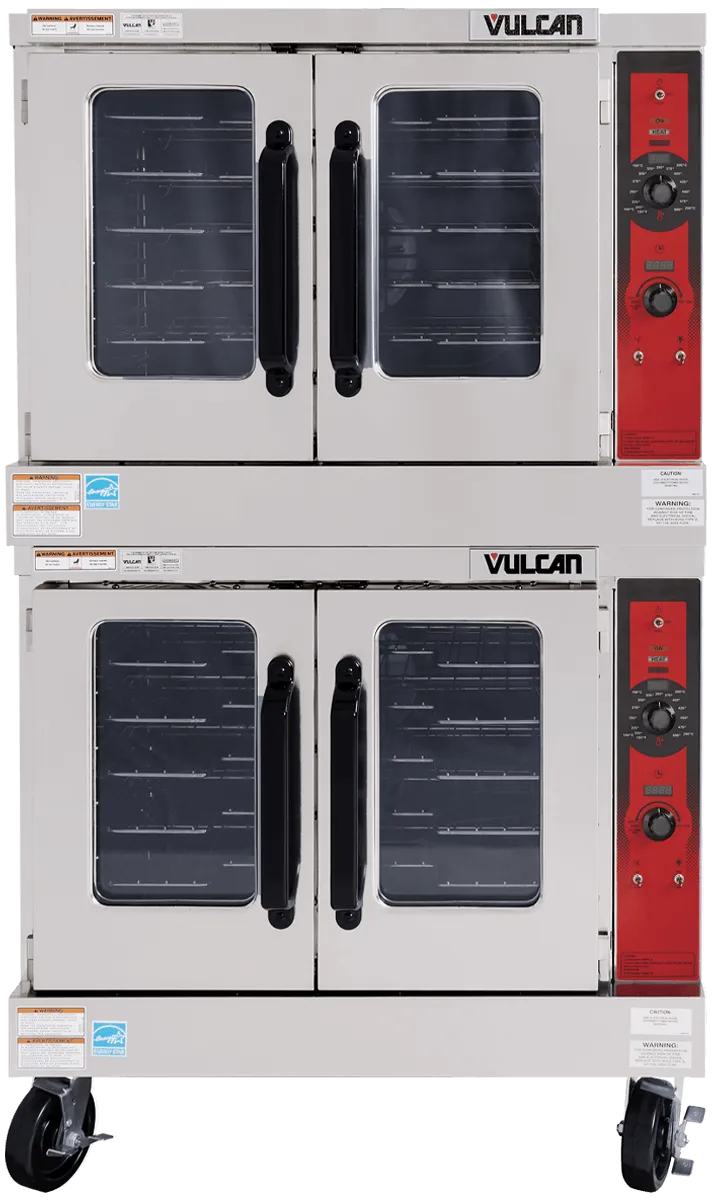

The Vulcan VC55GD is a full-size double deck gas convection oven from the VC5 series, with a 29" W x 22-1/8" D x 20" H cavity in each of two decks. Gas input is 100,000 BTU/hr.
A convection oven moves air across the product instead of relying on radiant heat, which is why it bakes and roasts faster and more evenly than a standard oven and why most kitchens that add one stop using the range oven for volume work. Five racks on an 11-position guide give real flexibility in how a load is stacked, and two independently controlled decks let the kitchen run different products at different temperatures at the same time.
The VC5 is Vulcan's newer convection oven platform. Its doors lift off without tools and go through a dishwasher, which is the single biggest difference in day to day cleaning compared with a fixed-door oven. An LED time and temperature display, a gentle bake mode selector and built-in diagnostics round out the control panel.
Product Details
- Vulcan® VC5 series full-size double deck gas convection oven
- 100,000 BTU/hr gas input total across both decks
- Blower motor 115V, 1 phase
- Interior cavity 29" W x 22-1/8" D x 20" H per deck
- Patented award-winning VC5 design
- Removable, dishwasher-safe lift-off doors
- Enhanced LED time and temperature display
- Gentle bake mode selector switch
- Built-in diagnostics
- Independently operated stainless steel doors with double-pane windows
- Cool-to-the-touch door handle
- 11-position rack guide with five nickel-plated racks per deck
- Two independently operated decks
- Stainless steel drip pans
Dimensions & Utilities
| Specification |
Detail |
| Configuration |
Double Deck, full size |
| Interior Cavity (W x D x H) |
29" W x 22-1/8" D x 20" H per deck |
| Gas Type |
Natural Gas |
| Total Input |
100,000 BTU/hr |
| Electrical |
Blower motor 115V, 1 phase |
| Oven Racks |
Five nickel-plated racks per deck |
| Rack Positions |
11-position rack guide |
| Temperature Range |
150°F to 500°F |
| Overall Dimensions (W x D x H) |
40-1/4" W x 40" D x 70" H |
| Shipping Weight |
928 lb |
| Installation Type |
Floor model |
Additional Product Information
-
Manufacturer: Vulcan (ITW Food Equipment Group)
-
Series: VC5
-
Model Number: VC55GD
-
Specification Sheet: Vulcan factory spec sheet
-
Alternate Configuration: VC55GD
-
Warranty: One year limited parts and labor
-
Model Number Coding: On Vulcan gas convection oven model numbers a 1 in the first suffix position denotes natural gas and a 2 denotes liquid propane — for example VC4GD-11D150K is natural gas and VC4GD-21D150K is the liquid propane equivalent. Verified against dealer listings for both configurations.
-
Specification Source: Dimensions, weight and gas input taken from the Vulcan factory specification sheet for this model.
