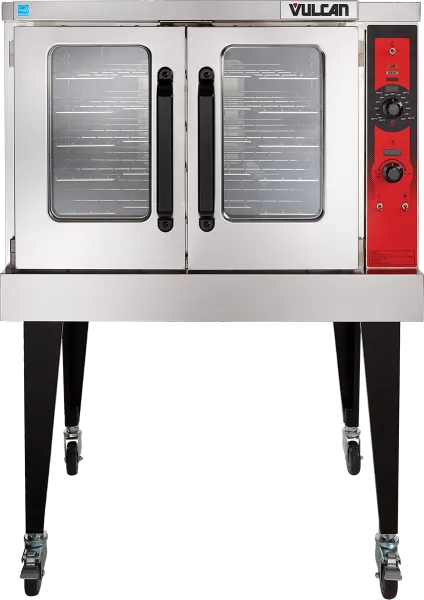

Vulcan VC5GD-11D1Z VC5 Series Single Deck Gas Convection Oven - Full Size, 50,000 BTU

Product Overview

The Vulcan VC5GD-11D1Z is a full-size single deck gas convection oven from the VC5 series, with a 29" W x 22-1/8" D x 20" H cavity and an 11-position rack guide. Gas input is 50,000 BTU/hr.

A convection oven moves air across the product instead of relying on radiant heat, which is why it bakes and roasts faster and more evenly than a standard oven and why most kitchens that add one stop using the range oven for volume work. Five racks on an 11-position guide give real flexibility in how a load is stacked.

The VC5 is Vulcan's newer convection oven platform. Its doors lift off without tools and go through a dishwasher, which is the single biggest difference in day to day cleaning compared with a fixed-door oven. An LED time and temperature display, a gentle bake mode selector and built-in diagnostics round out the control panel.

Product Details

• Vulcan® VC5 series full-size single deck gas convection oven
• 50,000 BTU/hr gas input
• Blower motor 115V, 1 phase
• Interior cavity 29" W x 22-1/8" D x 20" H
• Patented award-winning VC5 design
• Removable, dishwasher-safe lift-off doors
• Enhanced LED time and temperature display
• Gentle bake mode selector switch
• Built-in diagnostics
• Independently operated stainless steel doors with double-pane windows
• Cool-to-the-touch door handle
• 11-position rack guide with five nickel-plated racks per deck
• Stainless steel drip pans

Dimensions & Utilities

Additional Product Information

• Manufacturer: Vulcan (ITW Food Equipment Group)
• Series: VC5
• Model Number: VC5GD-11D1Z
• Specification Sheet: Vulcan factory spec sheet
• Alternate Configuration: VC5GD-21D1Z
• Warranty: One year limited parts and labor
• Model Number Coding: On Vulcan gas convection oven model numbers a 1 in the first suffix position denotes natural gas and a 2 denotes liquid propane — for example VC4GD-11D150K is natural gas and VC4GD-21D150K is the liquid propane equivalent. Verified against dealer listings for both configurations.
• Specification Source: Dimensions, weight and gas input taken from the Vulcan factory specification sheet for this model.
