Product Overview

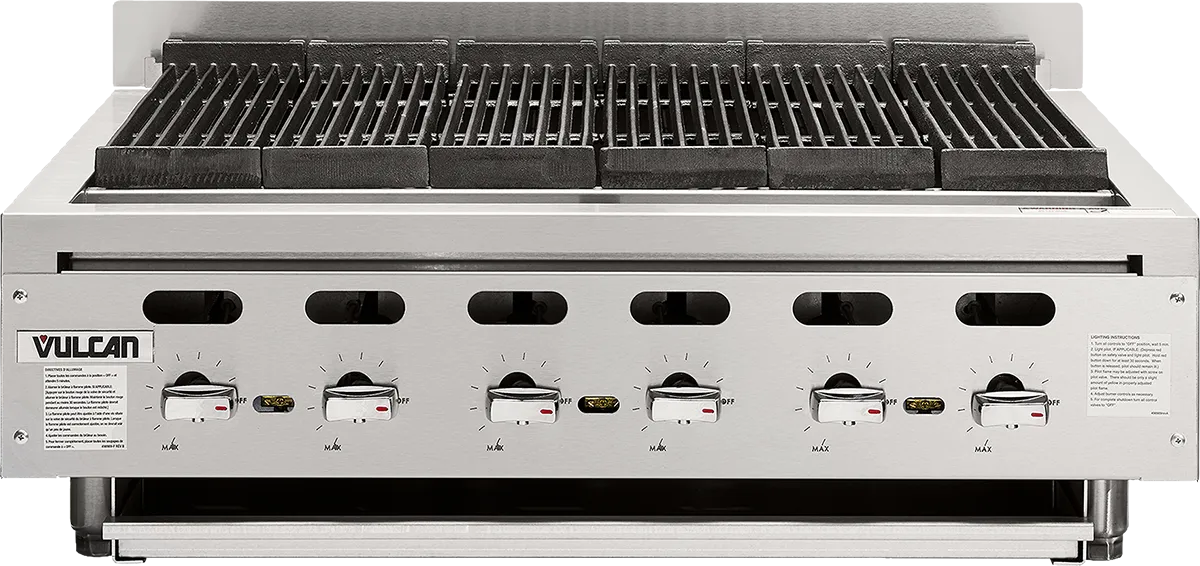

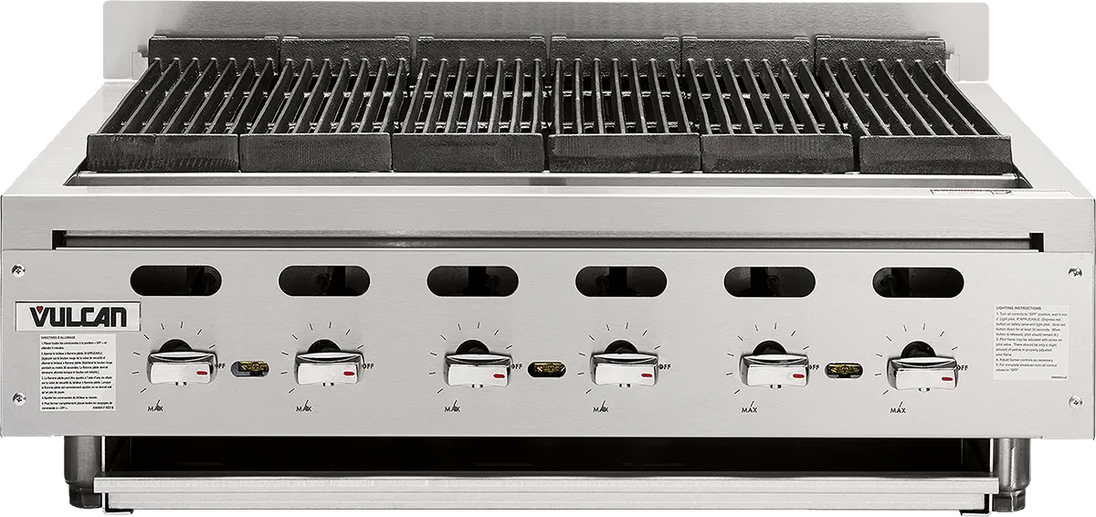

The Vulcan VACB36-101 Achiever is a 36" countertop radiant charbroiler built for kitchens that need real searing power without a floor-model footprint. 6 cast iron burners deliver 17,000 BTU/hr each for 102,000 BTU/hr total across a 32-1/4" x 22-5/16" broiling surface.
Each burner has its own infinite heat control valve, so a cook can run a hot sear zone and a holding zone on the same broiler and come back to the same settings the next shift. Heavy-duty cast iron radiants sit beneath cast iron diamond grates, spreading heat evenly and producing the mark and flavor a char-grilled menu depends on. Supercharger burner dividers and under-burner heat deflector panels keep the heat where the food is.
The all-welded chassis has stainless steel sides and a stainless control panel, and the unit lights on a standing pilot, so it keeps working through a power interruption. Gas connects at the rear with the pressure regulator supplied. A heat deflector tray system with a Cool Zone grease drawer catches drippings away from the burners for easier cleanup at close.
Product Details
- Vulcan® Achiever™ series 36" countertop radiant charbroiler
- 6 cast iron burners rated 17,000 BTU/hr each — 102,000 BTU/hr total
- Infinite heat control valve per burner
- Heavy-duty cast iron diamond grates, 5-1/4" wide, one per burner
- Heavy-duty cast iron char-radiants distribute heat evenly across the grate
- Broiling area 32-1/4" W x 22-5/16" D
- Supercharger burner dividers
- Heat deflector tray system with Cool Zone grease drawer
- Standing pilot ignition — no electrical connection required
- All-welded chassis with stainless steel sides and control panel
- Low-profile countertop design
- 3/4" rear gas connection with pressure regulator supplied
Dimensions & Utilities
| Specification |
Detail |
| Number of Burners |
6 cast iron burners, individually controlled |
| BTU per Burner |
17,000 BTU/hr |
| Total Input |
102,000 BTU/hr |
| Broiling Area (W x D) |
32-1/4" W x 22-5/16" D |
| Grates |
6 cast iron diamond grates, 5-1/4" wide each |
| Overall Dimensions (W x D x H) |
36" W x 31" D x 12" H |
| Shipping Weight |
370 lb |
| Installation Type |
Countertop |
| Gas Type |
Natural Gas |
| Gas Connection |
3/4" rear, pressure regulator supplied |
| Ignition |
Standing pilot |
| Electrical |
None required |
Additional Product Information
-
Manufacturer: Vulcan (ITW Food Equipment Group)
-
Series: Achiever
-
Model Number: VACB36-101
-
Specification Sheet: Vulcan factory spec sheet
-
Liquid Propane Model: VACB36-201
-
Warranty: One year limited parts and labor
-
Specification Source: Dimensions, weight and gas input taken from the Vulcan factory specification sheet for this model.
