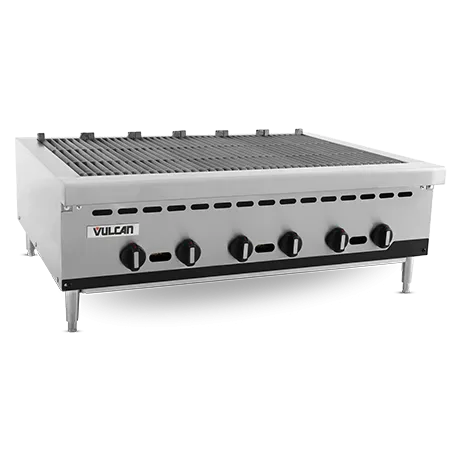

Vulcan VCRB36-1 36" Natural Gas Radiant Charbroiler - Counterline, 87,000 BTU

Product Overview

The Vulcan VCRB36-1 is a 36" radiant charbroiler from the Vulcan Core counterline, sized to drop onto a counter or an equipment stand in a tight line. It runs 6 burners at 14,500 BTU/hr per 6" section for 87,000 BTU/hr total.

Reversible flame arrestor broiling grates let the kitchen choose between a flat side for delicate items and a ribbed side for grill marks, and each burner has its own infinite heat control valve for zone cooking. Heavy-duty cast iron char-radiants spread the flame and hold heat between orders.

Full-width front grease drawers pull straight out for cleaning, and deflector panels under the burners shield whatever sits beneath — including a refrigerated base. Construction is stainless steel with a stainless grease trough, the unit lights on a standing pilot, and it converts between natural gas and LP in the field.

Product Details

• Vulcan® Core series 36" counterline radiant charbroiler
• 14,500 BTU/hr burner per 6" section — 87,000 BTU/hr total
• Infinite heat control valve per burner
• Reversible flame arrestor broiling grates (flat and ribbed sides)
• Heavy-duty cast iron char-radiants
• Broiling area approximately 31-1/2" wide
• Full-width front grease drawers
• Deflector panels below burners protect refrigerated bases
• Stainless steel construction with stainless grease trough
• Standing pilot ignition — no electrical connection required
• Field convertible between natural gas and LP
• Low-profile countertop design

Dimensions & Utilities

Additional Product Information

• Manufacturer: Vulcan (ITW Food Equipment Group)
• Series: Vulcan Core
• Model Number: VCRB36-1
• Specification Sheet: Vulcan factory spec sheet
• Warranty: One year limited parts and labor
• Specification Source: Dimensions, weight and gas input taken from the Vulcan factory specification sheet for this model.
