Product Overview

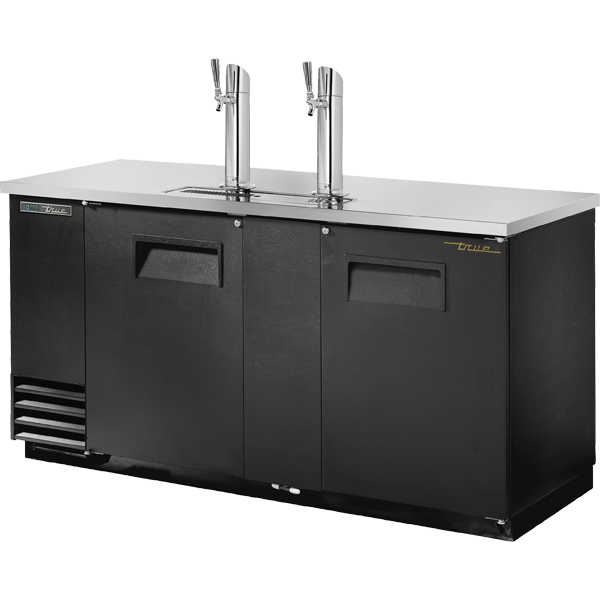

The True TDD-3-HC is a 69-1/8" direct draw beer dispenser that holds 3 half barrel kegs at 33°F to 38°F. Cold air is routed up through the insulated beer column so the first pour of the shift comes out cold rather than foaming away down the drain.
Two 3" insulated stainless steel beer columns; two-way tapper manifold standard The stainless steel countertop and reinforced floor with a 1/2" lip take the abuse of kegs being rolled in and out, and the door threshold is protected for the same reason.
The forced-air system is sized for a bar that opens the doors constantly, and the self-contained condensing unit is reachable for service without pulling the cabinet out of the bar line.
Product Details
- True® 69-1/8" direct draw beer dispenser
- Holds 3 half barrel kegs
- Maintains 33°F to 38°F
- Two 3" insulated stainless steel beer columns; two-way tapper manifold standard
- 2 solid swing doors with 12" recessed handles and locks
- Cold air routed through insulated beer column to prevent foaming
- Stainless steel countertop and reinforced stainless floor with 1/2" lip
- Door threshold protector for keg loading
- LED interior lighting
- Positive-seal magnetic gaskets, removable without tools
- R290 hydrocarbon refrigerant — zero ODP, 0.02 GWP
- Self-contained, factory-balanced refrigeration system
- Epoxy-coated evaporator resists corrosion
- High-density polyurethane insulation foamed in place (zero ODP, zero GWP)
- Factory pre-wired with cord and NEMA 5-15P plug
Dimensions & Utilities
| Specification |
Detail |
| Cabinet Dimensions (W x D x H) |
69-1/8" W x 27-1/8" D x 37" H |
| Keg Capacity |
3 half barrel kegs |
| Beer Columns |
Two 3" insulated stainless steel beer columns; two-way tapper manifold standard |
| Doors |
2 solid swing doors |
| Temperature |
33°F to 38°F |
| Electrical |
115V / 60 Hz / 1 Phase |
| Amps |
2.8 amps |
| Plug Type |
NEMA 5-15P (15 amp dedicated outlet recommended) |
| Refrigerant |
R290 Hydrocarbon (zero ODP / 0.02 GWP) |
| Cord Length |
7 ft. |
| Unit Weight |
400 lbs. |
Additional Product Information
-
Approvals & Certifications: Made in USA, ENERGY STAR, cUL, NSF/ANSI 7 (Packaged), Natural Refrigerant (R290).
-
Optional Accessories: Alternate door hinging, additional shelves, legs, castors and factory-installed digital temperature display are available on most models. Upcharges and lead times may apply.
-
Installation Requirements: Requires a dedicated 15 amp, 115V circuit. Allow clearance for condensing unit airflow and service access. Commercial installation only; not intended for home or residential use.
