Product Overview

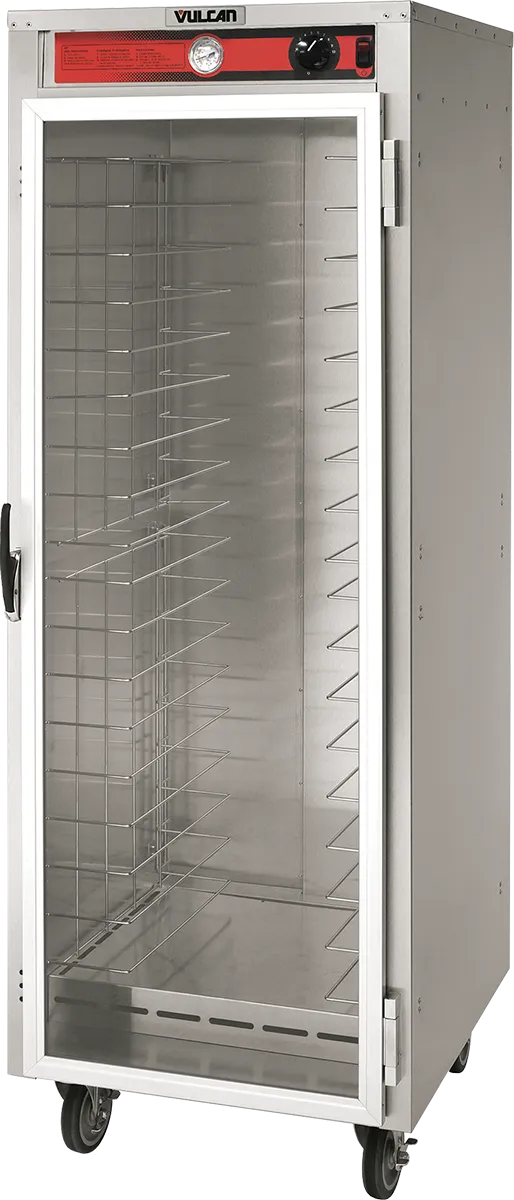

The Vulcan VHFA18-1M3ZN is a non-insulated electric heated holding cabinet taking 18 sheet pans, with a full-size glass door and two 1,000 W heating elements for 2000 W total at 120V.
Non-insulated means this cabinet is built to hold product in a kitchen, not to transport it — which is why it costs considerably less than an insulated transport cabinet of the same capacity. If the cabinet stays plugged in on the line, the insulation is paying for nothing.
A blower and air tunnel move heat evenly through the stack rather than letting the top shelf run hotter than the bottom. The glass door lets staff see the load without opening it and the hinges are reversible. The dial thermostat adjusts up to 190°F from a top-mounted recessed control panel, tray slides are fixed on 3" centers, and the cabinet rolls on four 5" casters, two with locks.
Product Details
- Vulcan® non-insulated electric heated holding cabinet
- Capacity: 18 sheet pans
- Full-size glass door with reversible hinges
- Blower and air tunnel for even heat distribution
- Two 1,000 W heating elements — 2000 W total
- Dial thermostat adjustable to 190°F
- Top-mounted recessed control panel
- Fixed tray slides on 3" centers
- 100%% stainless steel structure
- Four 5" casters, two with locks
- Electrical: 120V, 1 phase, 2000 W / 16.7 A
Dimensions & Utilities
| Specification |
Detail |
| Sheet Pan Capacity |
18 |
| Door |
Full-size glass, reversible hinges |
| Maximum Holding Temperature |
190°F |
| Controls |
Top-mounted recessed dial thermostat |
| Insulation |
Non-insulated — stationary holding, not transport |
| Tray Slides |
Fixed, 3" centers |
| Electrical |
120V, 1 phase, 2000 W / 16.7 A |
| Overall Dimensions (W x D x H) |
25-1/4" W x 30-3/4" D x 71" H |
| Shipping Weight |
220 lb |
| Mobility |
Four 5" casters, two with locks |
Additional Product Information
-
Manufacturer: Vulcan (ITW Food Equipment Group)
-
Model Number: VHFA18-1M3ZN
-
Specification Sheet: Vulcan factory spec sheet
-
Model Configuration: The trailing characters in this model number (for example -1M0ZN or -1E1ZN) are Vulcan's factory option code for this unit — control type, door or drawer configuration and voltage. Vulcan does not publish a public key to that code, so confirm the configuration against the Vulcan order guide before ordering.
-
Warranty: One year limited parts and labor
-
Specification Source: Dimensions and electrical taken from the Vulcan factory specification sheet for this model.
