Product Overview

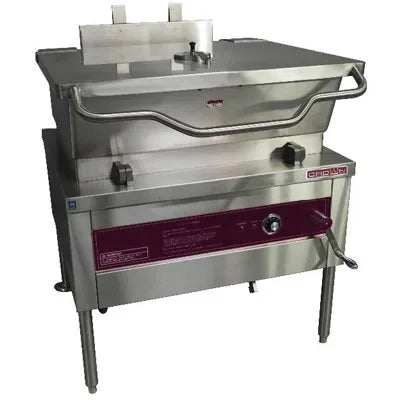

The Crown GS Series Gas Tilting Skillet (models GS-30 ) is a heavy-duty commercial braising pan engineered for high-volume commercial cooking. Available in 30-gallon capacity, it features a 10-gauge type 304 stainless steel pan with a #4 finish exterior, polished interior, and coved corners for effortless cleaning. The cooking surface boasts a 3/4" triple-ply construction with a 3/8" thick aluminum core, ensuring rapid and uniform heat distribution across the entire pan bottom.
Powered by stainless steel atmospheric burners with intermittent pilot ignition (100,000 BTU/hr for GS-30; 125,000 BTU, the unit operates on Natural Gas with 115 VAC electrical controls. A self-contained, permanently lubricated gearbox manual tilt mechanism allows smooth forward tilting for complete emptying of cooked contents. The NEMA-2 designed control enclosure houses a solid-state thermostat ranging from 100°F to 450°F (38°C to 232°C), high-temperature safety cut-off at 500°F (260°C), and a tilt safety switch that automatically shuts off burners if tilted more than 5 degrees.
Â
 |
 Specs Sheet |
Â
Product Details
- Heavy-duty gas-fired tilting skillet with manual tilt mechanism
- Available in 30-gallon (GS-30) capacity.
- 10-gauge Type 304 stainless steel pan with #4 exterior finish and polished interior
- 3/4" triple-ply cooking surface with 3/8" thick aluminum core for even heat distribution
- Stainless steel atmospheric burners with intermittent pilot ignition
- Stainless steel cover with spring-assist hinges, full-width handle, no-drip condensate guide, and swing-cover vent port
- Sloped front pan design hinged at front for precise tilting pour control with removable pour strainer and etched gallon markings
- Self-contained, permanently lubricated gearbox tilt mechanism for complete pan emptying
- NEMA-2 rated control enclosure with solid-state thermostat (100°F to 450°F / 38°C to 232°C)
- Safety features include pan tilt switch (shuts off burners at >5° tilt) and high-temp cut-off (500°F / 260°C)
- Heavy-duty welded frame with 1-5/8" stainless steel pipe frame, front adjustable bullet feet, and rear flanged adjustable feet
- AGA/CGA and NSF Certified
Dimensions & Utilities
|
Specification |
GS-30 (30 Gallon) |
 |
|
Capacity |
30 Gallons (114 Liters) |
 |
|
Gas Input (BTU/hr) |
100,000 BTU/hr (29.3 kW/hr) |
 |
|
Width (A / B) |
36" (914 mm) / 33.63" (854 mm) |
 |
|
Overall Height (Open) |
72.38" (1838 mm) |
 |
|
Shipping Weight |
550 lbs (250 kg) |
 |
|
Electrical Supply |
115 VAC, 1 Phase, 50/60 Hz, 2 Amps (furnished with 6' cord with 3-prong plug); 220 VAC optional |
|
|
Gas Connection |
3/4" IPS |
|
|
Gas Operating Pressure |
Natural Gas: 6" - 14" W.C. | Propane: 11" - 14" W.C. |
|
Additional Product Information
- Clearance Requirements: Minimum clearance for non-combustible floors: Sides: 0", Back: 6" (152 mm).
- Water Connections (Optional Faucets): Cold Water: 3/8" O.D. tubing; Hot Water: 3/8" O.D. tubing.
- Intended Use: Intended for commercial use only; not for household use.
