Product Overview

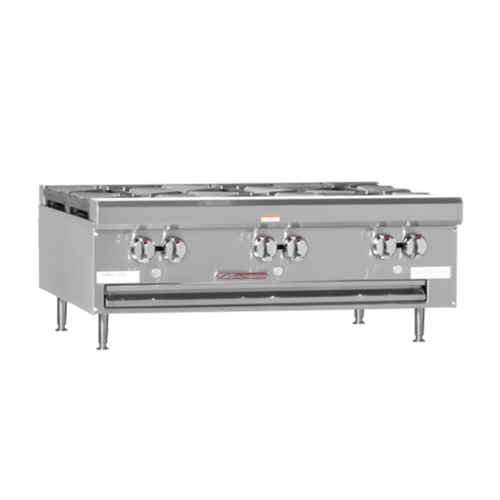

The Southbend HDO-36SU is a commercial-grade 36-inch gas modular countertop range featuring a step-up design for easy rear burner access and enhanced kitchen efficiency. Built with heavy-duty stainless steel front and sides, alongside aluminized steel rear and bottom panels, this range delivers outstanding durability in demanding commercial environments.
Equipped with six non-clogging cast iron open burners, the unit delivers 33,000 BTU/hr for Natural Gas (24,000 BTU/hr for LP) per burner, generating a total output of 198,000 BTU/hr (NAT) or 144,000 BTU/hr (LP). Each burner is controlled independently via individual Hi/Low gas valves and serviced by a standing pilot. Removable 12" cast flush top grates and a full-width, removable stainless steel crumb tray allow for straightforward cleaning and maintenance. Supported by 4-inch adjustable stainless steel legs, this unit connects via a standard 3/4" rear gas connection with an included pressure regulator.
 |
Specs Sheet |
Product Details
- Gas modular countertop range, step-up model
- (6) 33,000 BTU NAT (24,000 BTU LP) open top non-clogging cast iron burners
- Independent Hi/Low burner gas valve controls with standing pilots
- Stainless steel front and sides with aluminized steel rear and bottom panels
- 12" cast flush top grates (removable)
- Removable, full-width stainless steel crumb tray provided under burners
- 4" adjustable stainless steel legs included
- 3/4" rear gas connection with pressure regulator included
- One year limited Parts and Labor Warranty
- NSF and CSA Listed; Made in the USA
Dimensions & Utilities
|
Specification |
Detail
|
|
Width |
36.75" (933 mm) |
|
Crated Dimensions |
55" W x 39" D (1398 mm x 991 mm) |
|
Crated Weight |
253 lbs (115 kg) |
|
Number of Burners |
6 Open Top Burners |
|
Total Gas Output (BTU/hr) |
198,000 BTU (Natural Gas) / 144,000 BTU (Propane) |
|
Gas Connection |
3/4" Rear Gas Connection (Male NPT / Female with Regulator) |
|
Minimum Gas Supply Pressure |
7" W.C. (Natural Gas) / 11" W.C. (Propane) |
Additional Product Information
Clearance Requirements: Minimum clearance from noncombustible construction is zero. Minimum clearance from combustible construction is 10" on sides and 6" on rear.
Ventilation: Must be installed under an approved commercial kitchen ventilation hood.
Intended Use: Intended for commercial use only; not for household use.
