Product Overview

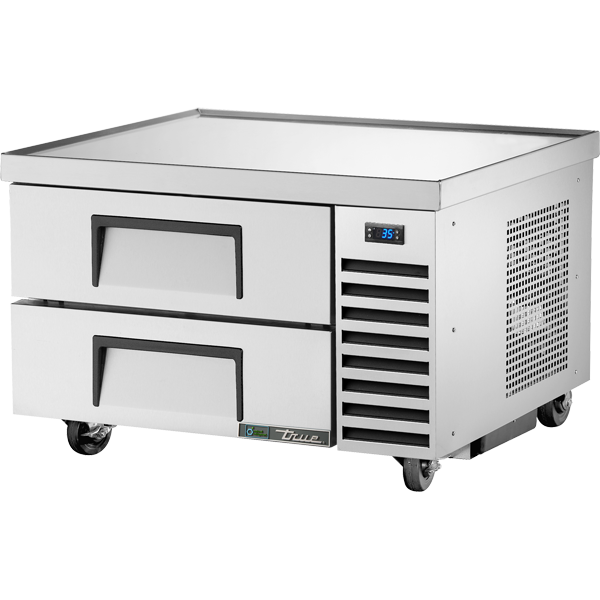

The True TRCB-36-HC is a 36-3/8" refrigerated chef base that puts cold product directly under the cooking line. The reinforced top carries up to 717 lbs. (326 kg), so a charbroiler, griddle or fryer battery sits on top while the drawers below hold the product that equipment is cooking.
That arrangement removes the walk to the reach-in. One full-size 12" x 20" x 4" pan and three 1/6-size 6" x 6" x 4" pans per drawer (pans sold separately) Each drawer rolls on heavy-duty slides and seals against a magnetic gasket, so cold air stays in the cabinet rather than spilling onto the floor every time a cook reaches down.
The cabinet is stainless steel and the top is reinforced rather than simply thickened, which is what allows the published load rating. The condensing unit is self-contained and reachable for service without lifting the equipment above.
Product Details
- True® 36-3/8" refrigerated chef base
- 2 drawers
- One full-size 12" x 20" x 4" pan and three 1/6-size 6" x 6" x 4" pans per drawer (pans sold separately)
- Top load rating: 717 lbs. (326 kg)
- Maintains 33°F to 38°F
- Reinforced stainless steel top rated for cooking equipment
- Heavy-duty drawer slides rated for constant commercial service
- Magnetic drawer gaskets seal cold air in the cabinet
- Stainless steel exterior and interior
- Casters standard
- R290 hydrocarbon refrigerant — zero ODP, 0.02 GWP
- Self-contained, factory-balanced refrigeration system
- Epoxy-coated evaporator resists corrosion
- High-density polyurethane insulation foamed in place (zero ODP, zero GWP)
- Factory pre-wired with cord and NEMA 5-15P plug
Dimensions & Utilities
| Specification |
Detail |
| Cabinet Dimensions (W x D x H) |
36-3/8" W x 32-1/8" D x 20-1/2" H |
| Drawers |
2 drawers |
| Pan Capacity |
One full-size 12" x 20" x 4" pan and three 1/6-size 6" x 6" x 4" pans per drawer (pans sold separately) |
| Top Load Rating |
717 lbs. (326 kg) |
| Temperature |
33°F to 38°F |
| Electrical |
115V / 60 Hz / 1 Phase |
| Amps |
2.4 amps |
| Plug Type |
NEMA 5-15P (15 amp dedicated outlet recommended) |
| Refrigerant |
R290 Hydrocarbon (zero ODP / 0.02 GWP) |
| Cord Length |
10 ft. |
| Unit Weight |
250 lbs. |
Additional Product Information
-
Approvals & Certifications: Made in USA, cUL, NSF-7 (Open), CE, Natural Refrigerant (R290).
-
Optional Accessories: Alternate door hinging, additional shelves, legs, castors and factory-installed digital temperature display are available on most models. Upcharges and lead times may apply.
-
Installation Requirements: Requires a dedicated 15 amp, 115V circuit. Allow clearance for condensing unit airflow and service access. Commercial installation only; not intended for home or residential use.
