Product Overview

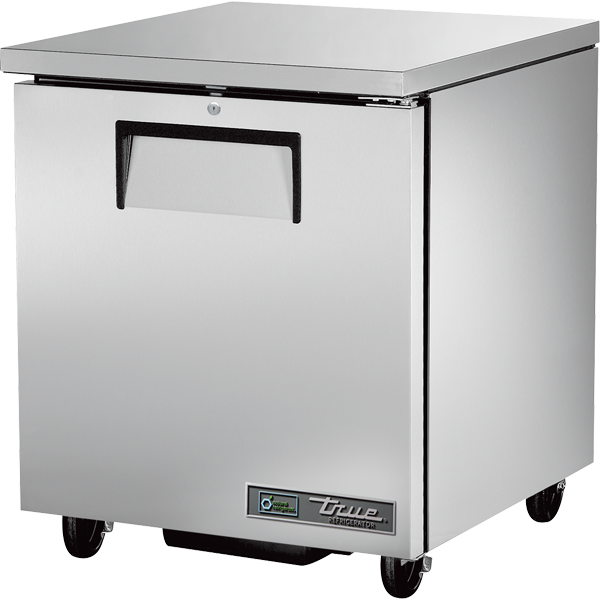

The True TUC-27-HC packs full commercial refrigeration into a 29-3/4" tall footprint that slides neatly under a standard work surface. The factory-balanced system uses R290 hydrocarbon refrigerant and guided airflow to hold 33°F to 38°F throughout the cabinet, so product near the door stays as cold as product at the back.
The exterior is stainless steel on the front, top and ends with a GalFan-coated steel back, and the interior is a clear-coated aluminum liner with a stainless steel floor and coved corners that wipe down fast. High-density polyurethane insulation is foamed in place, and the epoxy-coated evaporator resists the corrosion that shortens the life of lesser units.
Service was designed in rather than added on: the condensing unit is reached from the back and slides straight out, so routine maintenance does not mean pulling the cabinet apart. The solid door self-closes, holds open at 90° when hands are full, and its one-piece magnetic gasket lifts out for cleaning without tools.
Product Details
- True® one-section undercounter refrigerator, 27-5/8" wide
- Fits under a standard 30" work surface at 29-3/4" overall height
- Holds 33°F to 38°F (0.5°C to 3.3°C)
- R290 hydrocarbon refrigerant — zero ODP, 0.02 GWP
- Self-contained capillary tube system, factory balanced with guided airflow
- Condensing unit accessed from the back and slides out for service
- ECM evaporator and condenser fan motors
- Epoxy-coated evaporator resists corrosion
- Stainless steel front, top and ends; GalFan-coated steel back
- Clear-coated aluminum interior liner, stainless steel floor with coved corners
- High-density polyurethane insulation foamed in place (zero ODP, zero GWP)
- One solid door, stainless steel exterior with aluminum liner
- 12" (305 mm) recessed door handle
- Self-closing door with 90° stay-open feature
- One-piece magnetic door gasket, removable without tools
- Two adjustable heavy-duty PVC-coated wire shelves (23-1/4" L x 19-1/4" W top, 23-1/4" L x 13-3/4" W bottom)
- Shelves adjust in 1/2" (13 mm) increments, four chrome clips per shelf
- Factory pre-wired with cord and NEMA 5-15P plug
Dimensions & Utilities
| Specification |
Detail |
| Cabinet Dimensions (W x D x H) |
27-5/8" W x 30-1/8" D x 29-3/4" H (702 x 766 x 756 mm) |
| Doors |
1 solid door |
| Shelving |
2 adjustable PVC-coated wire shelves |
| Temperature Range |
33°F to 38°F (0.5°C to 3.3°C) |
| Electrical |
115V / 60 Hz / 1 Phase |
| Amps |
2.0 amps |
| Plug Type |
NEMA 5-15P (15 amp dedicated outlet recommended) |
| Refrigerant |
R290 Hydrocarbon (zero ODP / 0.02 GWP) |
| Cord Length |
10 ft. (3.05 m) |
| Unit Weight |
195 lbs. (89 kg) |
Additional Product Information
-
Approvals & Certifications: cUL, NSF/ANSI Standard 7 (open food product), CE, Natural Refrigerant (R290). Made in the USA.
-
Optional Accessories: 6" standard or seismic/flanged legs, 2-1/2" castors, factory-installed barrel lock, single or double overshelf, TUC-27 stacking collar, 30" deep white polyethylene or composite cutting boards (require L brackets), additional shelves, heavy-duty 16-gauge top, factory-installed digital temperature display, ADA-compliant 34" work surface height model, field-reversible hinge. Upcharges and lead times may apply.
-
Installation Requirements: Requires a dedicated 15 amp, 115V circuit. Allow clearance at the rear for condensing unit access. Commercial installation only.
