Product Overview

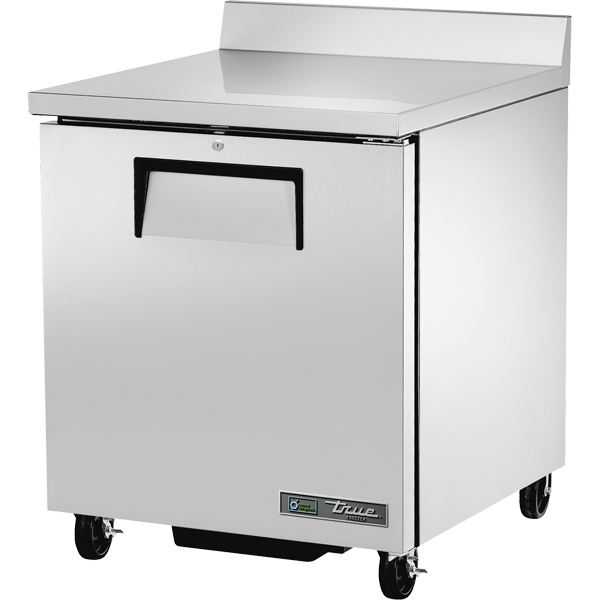

The True TWT-27F-HC is a 27-5/8" worktop unit that turns refrigerated storage into usable prep surface. The self-contained, factory-balanced capillary tube system runs on R290 hydrocarbon refrigerant — zero ozone depletion potential and a global warming potential of 0.02 — and holds -10°F for frozen product.
The exterior is stainless steel on the front, top and ends with a GalFan-coated steel back, and the interior is a clear-coated aluminum liner with a stainless steel floor and coved corners that wipe down fast. High-density polyurethane insulation is foamed in place, and the epoxy-coated evaporator resists the corrosion that shortens the life of lesser units.
Service was designed in rather than added on: the condensing unit is reached from the back and slides straight out. 1 solid door self-close, hold open at 90° when hands are full, and the one-piece magnetic gaskets lift out for cleaning without tools.
Product Details
- True® 27-5/8" worktop freezer
- Reinforced top doubles as a work surface
- Maintains -10°F for frozen product storage
- R290 hydrocarbon refrigerant — zero ODP, 0.02 GWP
- Self-contained, factory-engineered capillary tube refrigeration system
- ECM evaporator and condenser fan motors for reduced energy draw
- Epoxy-coated evaporator resists corrosion
- Condensing unit accessed from the back and slides out for service
- Stainless steel front, top and ends; GalFan-coated steel back
- 12" (305 mm) recessed door handle
- Self-closing door with 90° stay-open feature
- Clear-coated aluminum interior liner, stainless steel floor with coved corners
- High-density polyurethane insulation foamed in place (zero ODP, zero GWP)
- One-piece magnetic gaskets, removable without tools
- 2 adjustable PVC-coated wire shelves, 23-1/4" L x 16" D
- Factory pre-wired with cord and NEMA 5-15P plug
Dimensions & Utilities
| Specification |
Detail |
| Cabinet Dimensions (W x D x H) |
27-5/8" W x 30-1/8" D x 33-3/8" H |
| Doors |
1 solid door |
| Shelving |
2 adjustable PVC-coated wire shelves, 23-1/4" L x 16" D |
| Temperature |
-10°F |
| Electrical |
115V / 60 Hz / 1 Phase |
| Amps |
2.3 amps |
| Plug Type |
NEMA 5-15P (15 amp dedicated outlet recommended) |
| Refrigerant |
R290 Hydrocarbon (zero ODP / 0.02 GWP) |
| Cord Length |
10 ft. |
| Unit Weight |
210 lbs. |
Additional Product Information
-
Approvals & Certifications: Made in USA, ENERGY STAR, cUL, NSF-7 (Open), CE, Natural Refrigerant (R290).
-
Optional Accessories: 220-240V/50-60Hz electrical, 6" standard or seismic/flanged legs, 2-1/2" castors, alternate door hinging, additional shelves and factory-installed digital temperature display are available. Upcharges and lead times may apply.
-
Installation Requirements: Requires a dedicated 15 amp, 115V circuit. Allow clearance at the rear for condensing unit access. Commercial installation only; not intended for home or residential use.
