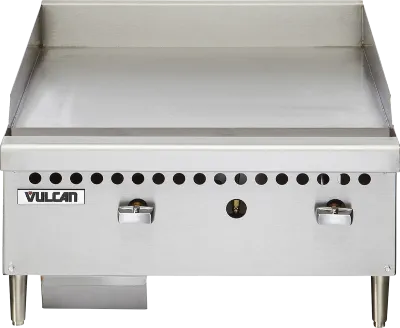

Vulcan VCRG24-M1 24" Natural Gas Griddle - Counterline Manual, 50,000 BTU

Product Overview

The Vulcan VCRG24-M1 is a 24" manual-control gas griddle from the Vulcan Core counterline, with a 1" thick polished steel plate and 2 U-shaped aluminized steel burners rated 25,000 BTU/hr per 12" of width, 50,000 BTU/hr total.

Each burner has its own manual control valve, so the cook sets heat directly by zone. This is the straightforward, lower-cost griddle for a line that wants control without a thermostat, and the U-shaped burners spread flame evenly under the plate so there are no cold stripes between zones.

The chassis is welded stainless and aluminized steel with 3-1/2" tapered stainless splashes, and a 4-1/2 quart grease can catches runoff. Ignition is a standing pilot with no electrical connection required, and a convertible regulator is supplied for LP service.

Product Details

• Vulcan® Core series 24" counterline manual gas griddle
• 1" thick polished steel griddle plate
• 2 U-shaped aluminized steel burners at 25,000 BTU/hr per 12" of width
• 50,000 BTU/hr total input
• Manual control valve per burner
• 3-1/2" tapered stainless steel splashes
• 4-1/2 quart high-capacity grease can
• Welded stainless and aluminized steel chassis
• Standing pilot ignition — no electrical connection required
• Convertible regulator supplied for LP service
• 4" adjustable legs

Dimensions & Utilities

Additional Product Information

• Manufacturer: Vulcan (ITW Food Equipment Group)
• Series: Vulcan Core
• Model Number: VCRG24-M1
• Specification Sheet: Vulcan factory spec sheet
• Warranty: One year limited parts and labor
• Specification Source: Dimensions, weight and gas input taken from the Vulcan factory specification sheet for this model.
