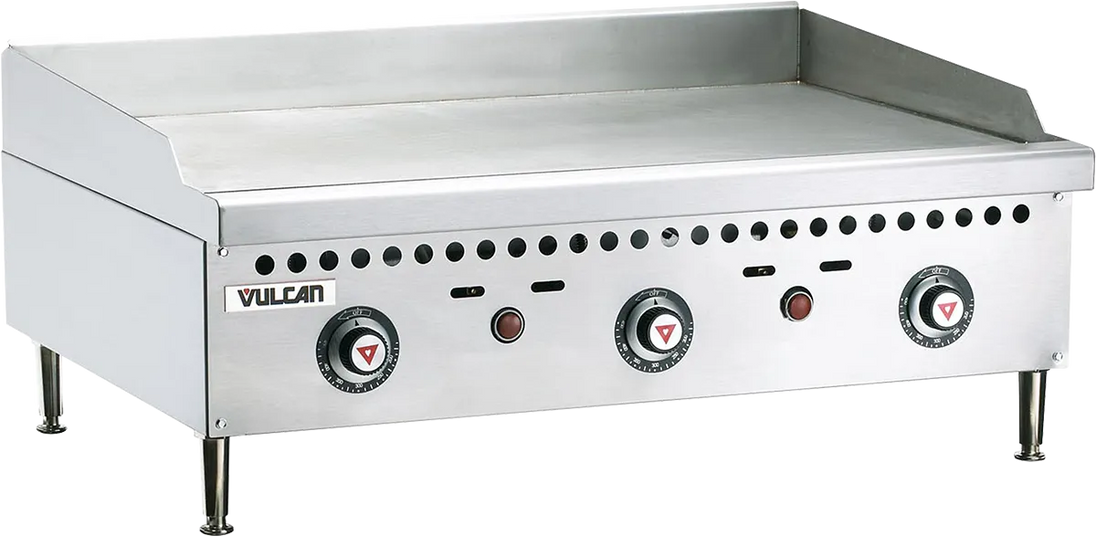

Vulcan VCRG36-T1 36" Natural Gas Griddle - Counterline Thermostatic, 75,000 BTU

Product Overview

The Vulcan VCRG36-T1 is a 36" thermostatically controlled gas griddle from the Vulcan Core counterline, with a 1" thick polished steel plate and 3 U-shaped aluminized steel burners rated 25,000 BTU/hr per 12" of width, 75,000 BTU/hr total.

Embedded mechanical snap-action thermostats hold each zone between 200°F and 450°F, bringing the plate back to the set point as product goes on. For eggs, pancakes and portioned proteins that is the difference between a consistent plate and one that drifts through a rush.

A pilot safety valve shuts the gas off if the pilot is extinguished. The chassis is fully welded stainless and aluminized steel, a 4-1/2 quart grease can collects runoff, and a convertible regulator is supplied for LP service. The griddle sits on 4" adjustable legs.

Product Details

• Vulcan® Core series 36" counterline thermostatic gas griddle
• 1" thick polished steel griddle plate
• 3 U-shaped aluminized steel burners at 25,000 BTU/hr per 12" of width
• 75,000 BTU/hr total input
• Embedded mechanical snap-action thermostats
• Temperature control 200°F to 450°F
• Pilot safety valve shuts off gas if pilot is extinguished
• 4-1/2 quart grease can
• Fully welded stainless and aluminized steel chassis
• Convertible regulator supplied for LP service
• 4" adjustable legs

Dimensions & Utilities

Additional Product Information

• Manufacturer: Vulcan (ITW Food Equipment Group)
• Series: Vulcan Core
• Model Number: VCRG36-T1
• Specification Sheet: Vulcan factory spec sheet
• Warranty: One year limited parts and labor
• Specification Source: Dimensions, weight and gas input taken from the Vulcan factory specification sheet for this model.
