Product Overview

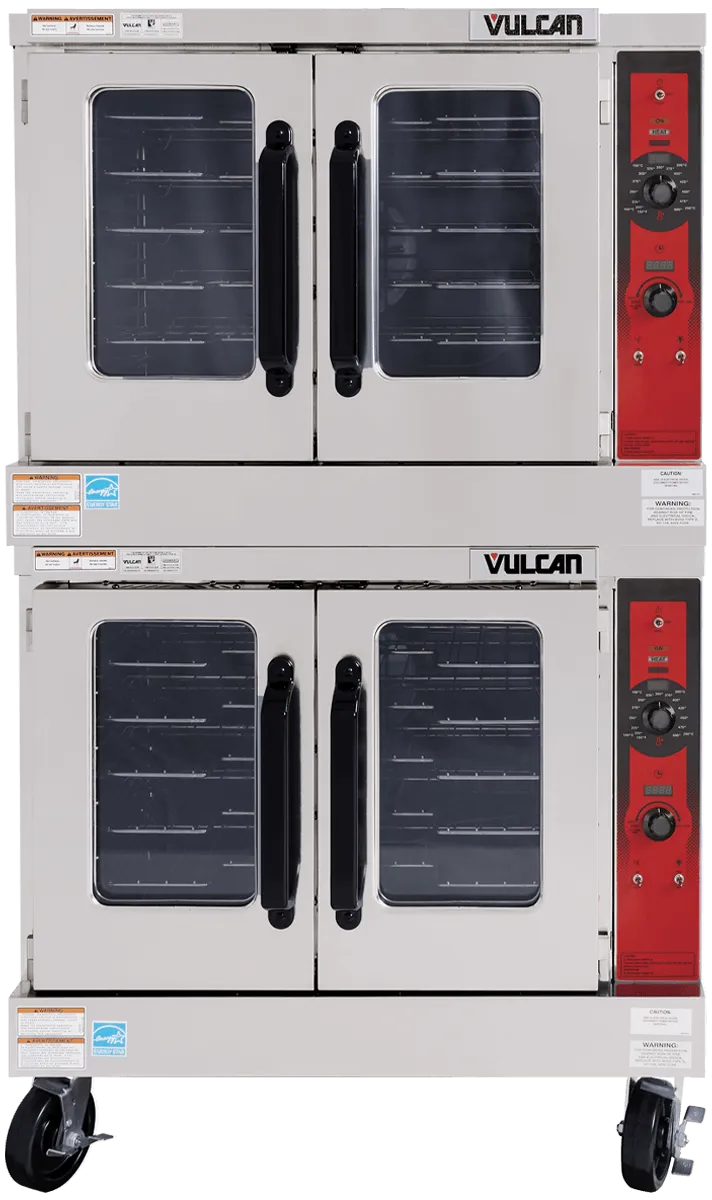

The Vulcan VC55ED-208 is a full-size double deck electric convection oven from the VC5 series, with a 29" W x 22-1/8" D x 20" H cavity in each of two decks. It runs on 208V at 25 kW.
A convection oven moves air across the product instead of relying on radiant heat, which is why it bakes and roasts faster and more evenly than a standard oven and why most kitchens that add one stop using the range oven for volume work. Five racks on an 11-position guide give real flexibility in how a load is stacked, and two independently controlled decks let the kitchen run different products at different temperatures at the same time.
The VC5 is Vulcan's newer convection oven platform. Its doors lift off without tools and go through a dishwasher, which is the single biggest difference in day to day cleaning compared with a fixed-door oven. An LED time and temperature display, a gentle bake mode selector and built-in diagnostics round out the control panel.
Product Details
- Vulcan® VC5 series full-size double deck electric convection oven
- 208V electric, 25 kW input
- Interior cavity 29" W x 22-1/8" D x 20" H per deck
- Patented award-winning VC5 design
- Removable, dishwasher-safe lift-off doors
- Enhanced LED time and temperature display
- Gentle bake mode selector switch
- Built-in diagnostics
- Independently operated stainless steel doors with double-pane windows
- Cool-to-the-touch door handle
- 11-position rack guide with five nickel-plated racks per deck
- Two independently operated decks
- Stainless steel drip pans
Dimensions & Utilities
| Specification |
Detail |
| Configuration |
Double Deck, full size |
| Interior Cavity (W x D x H) |
29" W x 22-1/8" D x 20" H per deck |
| Voltage |
208V |
| Power Input |
25 kW |
| Phase |
Set by the factory configuration suffix — confirm before ordering |
| Oven Racks |
Five nickel-plated racks per deck |
| Rack Positions |
11-position rack guide |
| Temperature Range |
150°F to 500°F |
| Overall Dimensions (W x D x H) |
40-1/4" W x 40" D x 70" H |
| Shipping Weight |
880 lb |
| Installation Type |
Floor model |
Additional Product Information
-
Manufacturer: Vulcan (ITW Food Equipment Group)
-
Series: VC5
-
Model Number: VC55ED-208
-
Specification Sheet: Vulcan factory spec sheet
-
Alternate Configuration: VC55ED-240
-
Warranty: One year limited parts and labor
-
Model Configuration: This SKU is a specific factory configuration of the VC55ED base model as listed on the Vulcan price sheet. The voltage shown above is the one the price sheet annotates for this SKU. The remaining digits in the model suffix set the rest of the factory electrical configuration, including phase — Vulcan does not publish a public key to that suffix, so confirm voltage and phase against the Vulcan order guide before ordering. For reference, dealers list VC4ED-11D1 as 208V three phase.
-
Specification Source: Dimensions, weight and power input taken from the Vulcan factory specification sheet for this model.
