Product Overview

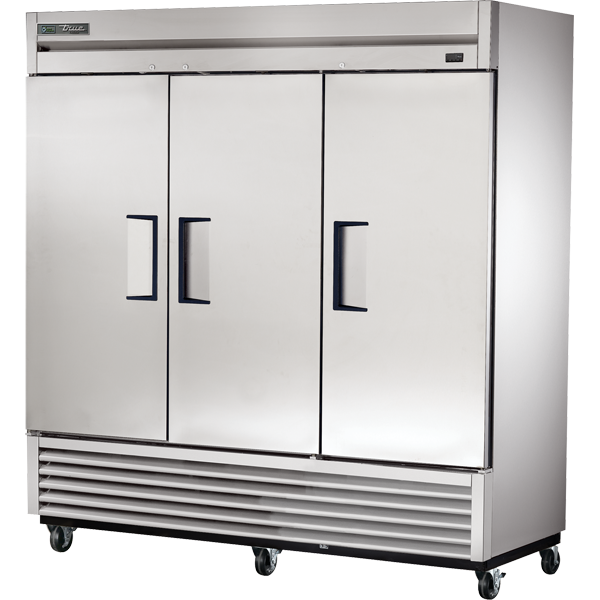

The True T-72F-HC is a 78-1/8" T-Series reach-in built on the platform that made True the default spec in American kitchens. The self-contained, factory-balanced capillary tube system runs on R290 hydrocarbon refrigerant — zero ozone depletion potential and a global warming potential of 0.02 — and holds -10°F for frozen product.
Construction is heavy duty throughout. A stainless steel front, anodized aluminum ends and GalFan-coated steel back wrap a clear-coated aluminum interior liner with a stainless steel floor and coved corners. High-density polyurethane insulation is foamed in place, and the bottom-mounted condensing unit sits out of the rising heat where it draws cooler air and stays easier to reach for service.
3 solid swing doors carry 12" recessed handles, lifetime-guaranteed torsion closures that pull the door shut on their own, and one-piece magnetic gaskets that lift out for cleaning without tools. 9 adjustable PVC-coated wire shelves adjust in 1/2" increments on pilasters, and an exterior temperature display lets staff confirm cabinet temperature without opening the door.
Product Details
- True® T-Series 78-1/8" reach-in freezer
- Maintains -10°F for frozen product storage
- R290 hydrocarbon refrigerant — zero ODP, 0.02 GWP
- Self-contained, factory-engineered capillary tube refrigeration system
- ECM evaporator and condenser fan motors for reduced energy draw
- Epoxy-coated evaporator resists corrosion
- Bottom-mounted condensing unit for cooler operation and easier service access
- Stainless steel front, anodized aluminum ends, GalFan-coated steel back
- 12" recessed door handle with sheet metal interlock — lifetime guarantee
- Positive-seal self-closing door with torsion-type closure — lifetime guarantee
- Lifetime guarantee on door hinges
- Safety-shielded interior lighting with rocker switch
- Exterior temperature display
- Welded steel frame rail with black powder coat finish
- 4" stem casters standard, locking on the front set
- Clear-coated aluminum interior liner, stainless steel floor with coved corners
- High-density polyurethane insulation foamed in place (zero ODP, zero GWP)
- One-piece magnetic gaskets, removable without tools
- 9 adjustable PVC-coated wire shelves, 24-1/8" L x 22-3/8" D
- Factory pre-wired with cord and NEMA 5-15P plug
Dimensions & Utilities
| Specification |
Detail |
| Cabinet Dimensions (W x D x H) |
78-1/8" W x 29-1/2" D x 78-3/8" H |
| Doors |
3 solid swing doors |
| Shelving |
9 adjustable PVC-coated wire shelves, 24-1/8" L x 22-3/8" D |
| Temperature |
-10°F |
| Electrical |
115V / 60 Hz / 1 Phase |
| Amps |
14.0 amps |
| Plug Type |
NEMA 5-15P (15 amp dedicated outlet recommended) |
| Refrigerant |
R290 Hydrocarbon (zero ODP / 0.02 GWP) |
| Cord Length |
9 ft. |
| Unit Weight |
650 lbs. |
Additional Product Information
-
Approvals & Certifications: Made in USA, cUL, NSF-7 (Open), Natural Refrigerant (R290).
-
Lifetime Guarantees: Recessed door handle, door hinges and torsion-type door closure system.
-
Optional Accessories: 220-240V/50-60Hz electrical, 6" standard or seismic/flanged legs, 2-1/2" castors, alternate door hinging, additional shelves and factory-installed digital temperature display are available. Upcharges and lead times may apply.
-
Installation Requirements: Requires a dedicated 15 amp, 115V circuit. Allow clearance at the rear for condensing unit access. Commercial installation only; not intended for home or residential use.
