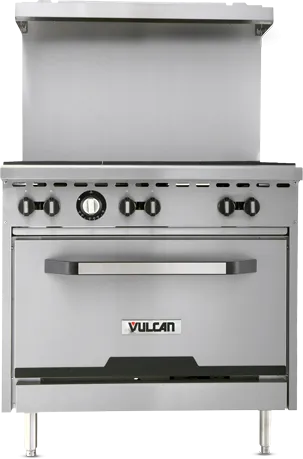

Vulcan SX36-6BN SX Series 36" Natural Gas Range - 6 Burners, 198,000 BTU

Product Overview

The Vulcan SX36-6BN is a 36" SX Core series natural gas range with 6 open-top burners rated 28,000 BTU/hr each and a standard oven base. Total input is 198,000 BTU/hr.

The SX series is Vulcan's value line: the same open-burner layout and oven configuration as the heavier Endurance ranges, at 28,000 BTU per burner instead of 30,000 and a lighter frame. For an operation that needs a dependable six-burner range rather than the heaviest one available, it is the right economics.

Burner heads lift off for cleaning and a shrouded flash tube pilot system lights them from one pilot. The oven thermostat adjusts from 250°F to 500°F, the front, sides and backriser are stainless steel, and 12" x 12" cast top grates with aeration bowls handle heavy stockpots. The range stands on 6" adjustable stainless legs.

Product Details

• Vulcan® SX Core series 36" gas range
• 6 open-top burners rated 28,000 BTU/hr each
• 198,000 BTU/hr total input
• Standard oven base
• Oven thermostat 250°F to 500°F
• Lift-off burner heads
• Shrouded flash tube pilot system
• 12" x 12" cast top grates with aeration bowls
• Stainless steel front, sides and backriser
• 6" stainless steel adjustable legs
• One oven rack with four rack positions
• Available for natural or propane gas

Dimensions & Utilities

Additional Product Information

• Manufacturer: Vulcan (ITW Food Equipment Group)
• Series: SX Core
• Model Number: SX36-6BN
• Specification Sheet: Vulcan factory spec sheet
• Liquid Propane Model: SX36-6BP
• Warranty: One year limited parts and labor
• Specification Source: Dimensions, weight and gas input taken from the Vulcan factory specification sheet for this model.
