Product Overview

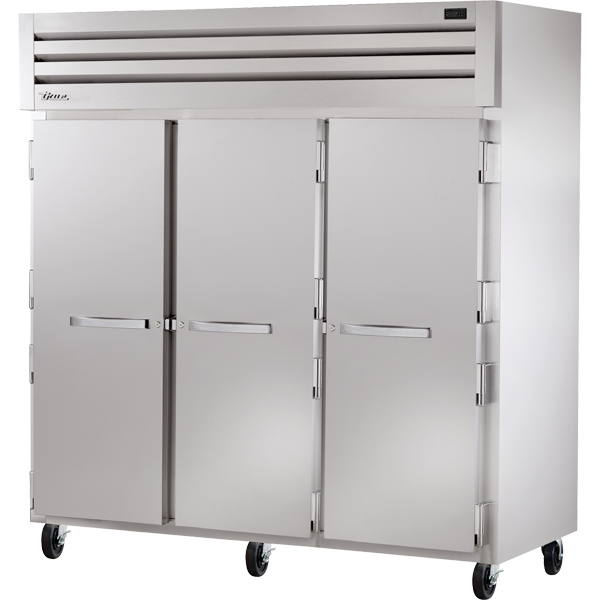

The True STA3F-3S-HC is a 77-3/4" Spec Series reach-in freezer built for operations that write their own equipment specifications. The Spec Series is True's heavy-duty platform: thicker insulation, a deeper cabinet and a refrigeration system sized with headroom, so it holds temperature in a hot kitchen where a lighter unit would run continuously.
This unit is finished with stainless steel doors and front with matching aluminum sides, aluminum interior walls and a stainless steel floor. High-density polyurethane insulation is foamed in place, and the self-contained system runs R290 hydrocarbon refrigerant with zero ozone depletion potential and a global warming potential of 0.02.
3 solid swing doors carry recessed handles and self-closing hardware, and the one-piece magnetic gaskets lift out for cleaning without tools. 9 chrome-plated wire shelves adjust on pilasters in 1/2" increments.
Product Details
- True® Spec Series 77-3/4" reach-in freezer
- Maintains -10°F
- R290 hydrocarbon refrigerant — zero ODP, 0.02 GWP
- Self-contained, factory-engineered refrigeration system sized with capacity headroom
- High-density polyurethane insulation foamed in place (zero ODP, zero GWP)
- Epoxy-coated evaporator resists corrosion
- Exterior and interior: stainless steel doors and front with matching aluminum sides, aluminum interior walls and a stainless steel floor
- 3 solid swing doors with recessed handles
- Self-closing doors with stay-open feature
- One-piece magnetic gaskets, removable without tools
- 9 chrome-plated wire shelves
- Pilasters adjust shelving in 1/2" (13 mm) increments
- Heavy-duty casters standard
Dimensions & Utilities
| Specification |
Detail |
| Cabinet Dimensions (W x D x H) |
77-3/4" W x 33-3/4" D x 77-3/4" H |
| Doors |
3 solid swing doors |
| Shelving |
9 chrome-plated wire shelves |
| Temperature |
-10°F |
| Electrical |
208-230/60/1 |
| Amps |
8.3 amps |
| Plug Type |
Consult factory spec sheet — this model is not 115V |
| Refrigerant |
R290 Hydrocarbon (zero ODP / 0.02 GWP) |
| Cord Length |
9 ft. |
| Unit Weight |
920 lbs. |
Additional Product Information
-
Approvals & Certifications: Made in USA, cUL, NSF/ANSI 7 (Open), Natural Refrigerant (R290).
-
Optional Accessories: Alternate door hinging, additional shelves, glass doors, half doors, bun tray racks and factory-installed digital temperature display are available across the Spec Series. Upcharges and lead times may apply.
-
Installation Requirements: Commercial installation only; not intended for home or residential use. Allow clearance for condensing unit airflow and service access.
-
Specification Note: This model runs on 208-230V, not the 115V used across the rest of the Spec Series. It requires a different receptacle and circuit. Confirm the plug configuration on the factory spec sheet before quoting installation.
