Product Overview

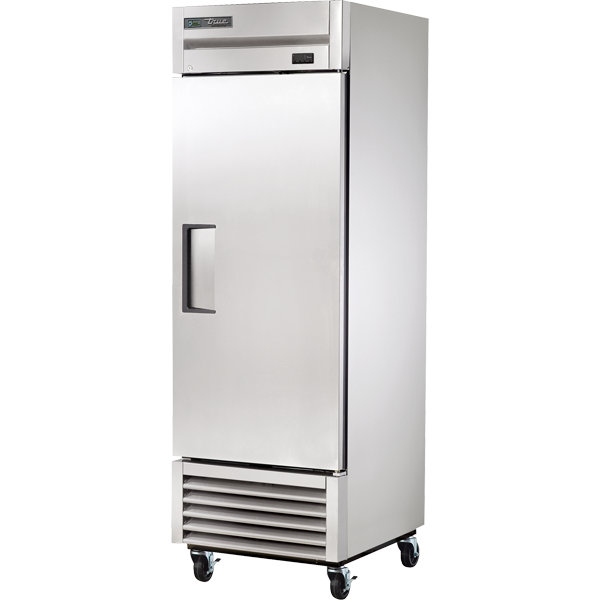

The True T-23-HC is a one-section reach-in refrigerator built for the demands of a working commercial kitchen. The cabinet holds a steady 33°F to 38°F using a factory-balanced, self-contained capillary tube system charged with R290 hydrocarbon refrigerant, which carries zero ozone depletion potential and a global warming potential of just 0.02.
Construction is heavy duty throughout: a stainless steel front, anodized aluminum ends and a GalFan-coated steel back wrap a clear-coated aluminum interior liner with a stainless steel floor and coved corners. High-density polyurethane insulation is foamed in place for thermal efficiency, and the bottom-mounted condensing unit keeps the compressor out of the heat and within easy reach for service.
The full-width door carries a 12" recessed handle, a lifetime-guaranteed torsion closure that pulls the door shut automatically, and a one-piece magnetic gasket that lifts out for cleaning without tools. Three heavy-duty PVC-coated wire shelves adjust in 1/2" increments on pilasters, and an exterior digital temperature display lets staff confirm cabinet temperature at a glance.
Product Details
- True® T-Series one-section reach-in refrigerator, 27" wide
- Holds 33°F to 38°F (0.5°C to 3.3°C) for safe food storage
- R290 hydrocarbon refrigerant — zero ODP, 0.02 GWP
- Self-contained, factory-engineered capillary tube refrigeration system
- Bottom-mounted condensing unit for cooler operation and easier service access
- ECM evaporator and condenser fan motors for reduced energy draw
- Epoxy-coated evaporator resists corrosion
- Stainless steel front, anodized aluminum ends, GalFan-coated steel back
- Clear-coated aluminum interior liner with stainless steel floor and coved corners
- High-density polyurethane insulation foamed in place (zero ODP, zero GWP)
- One full-width solid swing door, stainless exterior with aluminum liner; lock standard
- 12" recessed door handle with sheet metal interlock — lifetime guarantee
- Positive-seal self-closing door with torsion-type closure — lifetime guarantee
- Lifetime guarantee on door hinges
- One-piece magnetic door gasket, removable without tools
- Three adjustable heavy-duty PVC-coated wire shelves, 22-7/8" L x 23-1/4" D
- Pilasters adjust shelving in 1/2" (13 mm) increments; four chrome clips per shelf
- Safety-shielded interior lighting with rocker switch above the door
- Exterior temperature display
- Welded steel frame rail with black powder coat finish
- 4" stem casters standard, locking on the front set
- Factory pre-wired with cord and NEMA 5-15P plug
Dimensions & Utilities
| Specification |
Detail |
| Cabinet Dimensions (W x D x H) |
27" W x 29-1/2" D x 78-3/8" H (686 x 750 x 1991 mm) |
| Doors |
1 solid swing door, full width |
| Shelving |
3 adjustable PVC-coated wire shelves |
| Temperature Range |
33°F to 38°F (0.5°C to 3.3°C) |
| Electrical |
115V / 60 Hz / 1 Phase |
| Amps |
2.2 amps |
| Plug Type |
NEMA 5-15P (15 amp dedicated outlet recommended) |
| Refrigerant |
R290 Hydrocarbon (zero ODP / 0.02 GWP) |
| Cord Length |
9 ft. (2.74 m) |
| Unit Weight |
270 lbs. (123 kg) |
Additional Product Information
-
Approvals & Certifications: ENERGY STAR®, cUL, NSF/ANSI Standard 7 (open food product), CE, UL EPH Classified. Made in the USA.
-
Lifetime Guarantees: Recessed door handle, door hinges and torsion-type door closure system.
-
Optional Accessories: 220-240V/50-60Hz electrical, 6" standard or seismic/flanged legs, 2-1/2" castors, alternate door hinging (factory installed), additional shelves, half-door or full-door bun tray racks. Upcharges and lead times may apply.
-
Installation Requirements: Requires a dedicated 15 amp, 115V circuit. Commercial installation only; not intended for home or residential use.
