Product Overview

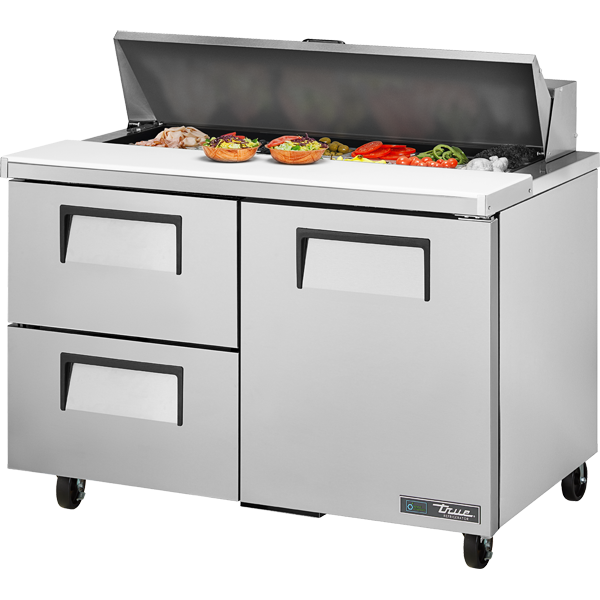

The True TSSU-48-12D-2-HC is a 48-3/8" sandwich and salad unit built to keep a prep station moving through a full service. True's patented forced-air design holds both the pans on top and the cabinet below between 33°F to 41°F, so product in the rail stays as cold as product on the shelf and the top does not creep warm during a rush.
The patented removable stainless steel lid and hood are foam insulated, holding pan temperature during slow periods without cycling the compressor harder than it needs to.
Drawers replace the lower door section, so a cook pulls product straight out at waist height instead of crouching and reaching. Each drawer rolls on heavy-duty slides and seals against a magnetic gasket. The exterior is stainless steel front, top and ends over a clear-coated aluminum liner with a stainless floor and coved corners, and the condensing unit slides out from the back for service.
Product Details
- True® 48-3/8" sandwich and salad unit
- Patented forced-air design holds 33°F to 41°F in both food pans and cabinet interior
- Complies with ANSI/NSF-7 for open food product
- R290 hydrocarbon refrigerant — zero ODP, 0.02 GWP
- Self-contained capillary tube system, factory balanced with guided airflow
- Low-velocity, high-volume fan with sealed, self-lubricating motor
- Condensing unit accessed from the back on a slide-out mount
- Epoxy-coated evaporator resists corrosion
- 12 x 1/6-size countertop pans; each drawer fits one 1/3-size and one 1/2-size pan (drawer pans sold separately)
- Removable cutting board — 11-3/4" D x 1/2" thick, full length, removable
- Heavy-duty drawer slides rated for constant commercial service
- Magnetic drawer gaskets seal cold air in the cabinet
- Stainless steel front, top and ends; GalFan-coated steel back
- Clear-coated aluminum interior liner, stainless steel floor with coved corners
- High-density polyurethane insulation foamed in place (zero ODP, zero GWP)
- 1 solid door and 2 drawers with stainless exterior and aluminum liner
- One-piece magnetic gaskets, removable without tools
- Drawer storage in place of lower shelving
- Factory pre-wired with cord and NEMA 5-15P plug
Dimensions & Utilities
| Specification |
Detail |
| Cabinet Dimensions (W x D x H) |
48-3/8" W x 30-1/8" D x 36-3/4" H |
| Pan Capacity |
12 x 1/6-size countertop pans; each drawer fits one 1/3-size and one 1/2-size pan (drawer pans sold separately) |
| Doors & Drawers |
1 solid door and 2 drawers |
| Shelving |
Drawer storage in place of lower shelving |
| Cutting Board |
11-3/4" D x 1/2" thick, full length, removable |
| Temperature Range |
33°F to 41°F |
| Electrical |
115V / 60 Hz / 1 Phase |
| Amps |
5.8 amps |
| Plug Type |
NEMA 5-15P (15 amp dedicated outlet recommended) |
| Refrigerant |
R290 Hydrocarbon (zero ODP / 0.02 GWP) |
| Cord Length |
10 ft. |
| Unit Weight |
325 lbs. |
Additional Product Information
-
Approvals & Certifications: Made in USA, cUL, NSF/ANSI 7 (Open), CE, Natural Refrigerant (R290).
-
Optional Accessories: 6" standard or seismic/flanged legs, 2-1/2" castors, additional shelves, single or double overshelf, flat lid, sneezeguard, composite cutting board, pan dividers and factory-installed exterior digital temperature display are available. Upcharges and lead times may apply.
-
Optional Electrical: 230-240V/50Hz or 208-230V/60Hz available on most models. Upcharge and lead times may apply.
-
Installation Requirements: Requires a dedicated 15 amp, 115V circuit. Allow clearance at the rear for condensing unit access. Commercial installation only; not intended for home or residential use.
