Product Overview

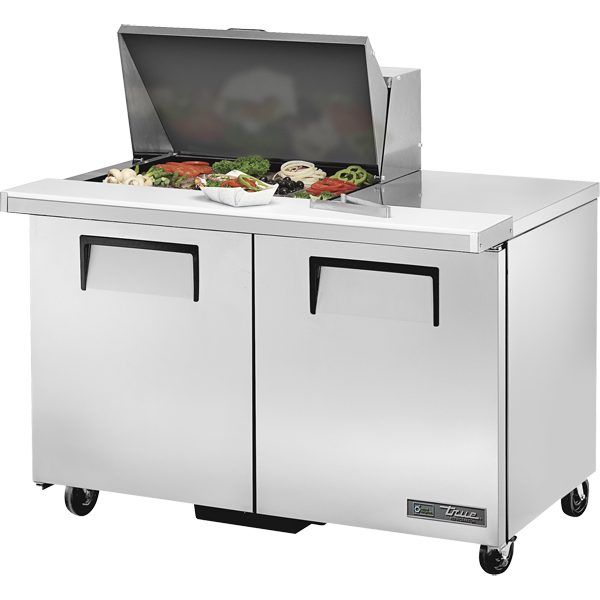

The True TSSU-48-12M-B-HC is a 48" mega top sandwich and salad unit that puts twelve 1/6-size pans within arm's reach of the cutting board. True's patented forced-air design holds both the pans and the cabinet below between 33°F and 41°F, so prepped product stays in the safe zone through a full service without the top rail warming up.
Below the rail sit two solid doors over four adjustable PVC-coated wire shelves, giving a line cook backup stock without leaving the station. The stainless steel front, top and ends stand up to daily scrubbing, and the clear-coated aluminum interior with coved corners and a stainless floor cleans out quickly at close.
The removable stainless steel lid and hood are foam insulated and patented by True, and the full-length white polyethylene cutting board lifts off for washing. The condensing unit is reached from the back on a slide-out mount, keeping routine service simple.
Product Details
- True® mega top sandwich / salad prep unit, 48-3/8" wide
- Holds twelve (12) clear polycarbonate NSF-approved 1/6-size pans (6-7/8" L x 6-1/4" W x 4" D)
- Also accepts 6" (153 mm) deep pans, supplied by others
- Patented forced-air design holds 33°F to 41°F in both food pans and cabinet interior
- Complies with ANSI/NSF-7 for open food product
- R290 hydrocarbon refrigerant — zero ODP, 0.02 GWP
- Self-contained capillary tube system, factory balanced with guided airflow
- Low-velocity, high-volume fan with sealed, self-lubricating motor
- Condensing unit accessed from the back on a slide-out mount
- Epoxy-coated evaporator resists corrosion
- Patented removable stainless steel lid and hood, foam insulated
- Full-length removable cutting board — 8-7/8" deep, 1/2" thick, white high-density polyethylene
- Countertop opening accepts pan divider bars
- Stainless steel front, top and ends; GalFan-coated steel back
- Clear-coated aluminum interior liner, stainless steel floor with coved corners
- High-density polyurethane insulation foamed in place (zero ODP, zero GWP)
- Two solid doors, stainless exterior with aluminum liner; 12" recessed handles
- Self-closing doors with 90° stay-open feature
- One-piece magnetic door gaskets, removable without tools
- Four adjustable PVC-coated wire shelves, 21-9/16" L x 16" D
- Pilasters adjust in 1/2" (13 mm) increments; four chrome clips per shelf
- Barrel locks available, one per door, factory installed
Dimensions & Utilities
| Specification |
Detail |
| Cabinet Dimensions (W x D x H) |
48-3/8" W x 34-1/8" D x 40-3/8" H (1229 x 867 x 1026 mm) |
| Pan Capacity |
12 x 1/6-size pans included (6-7/8" L x 6-1/4" W x 4" D) |
| Doors |
2 solid doors |
| Shelving |
4 adjustable PVC-coated wire shelves |
| Cutting Board |
Full length, 8-7/8" D x 1/2" thick, white polyethylene |
| Temperature Range |
33°F to 41°F (0.5°C to 5°C) |
| Electrical |
115V / 60 Hz / 1 Phase |
| Amps |
5.8 amps |
| Plug Type |
NEMA 5-15P (15 amp dedicated outlet recommended) |
| Refrigerant |
R290 Hydrocarbon (zero ODP / 0.02 GWP) |
| Cord Length |
10 ft. (3.05 m) |
| Unit Weight |
325 lbs. (141 kg) |
Additional Product Information
-
Approvals & Certifications: cUL, NSF/ANSI Standard 7 (open food product), CE, Natural Refrigerant (R290). Made in the USA.
-
Optional Accessories: 6" standard or seismic/flanged legs, 2-1/2" castors, additional shelves, single or double overshelf, flat lid, sneezeguard, composite cutting board, crumb catcher (requires crumb catcher cutting board), pan dividers, factory-installed exterior digital temperature display, ADA-compliant 34" work surface height model. Upcharges and lead times may apply.
-
Optional Electrical: 230-240V/50Hz or 208-230V/60Hz available. Upcharge and lead times may apply.
-
Installation Requirements: Requires a dedicated 15 amp, 115V circuit. Allow clearance at the rear for condensing unit access. Commercial installation only.
