Product Overview

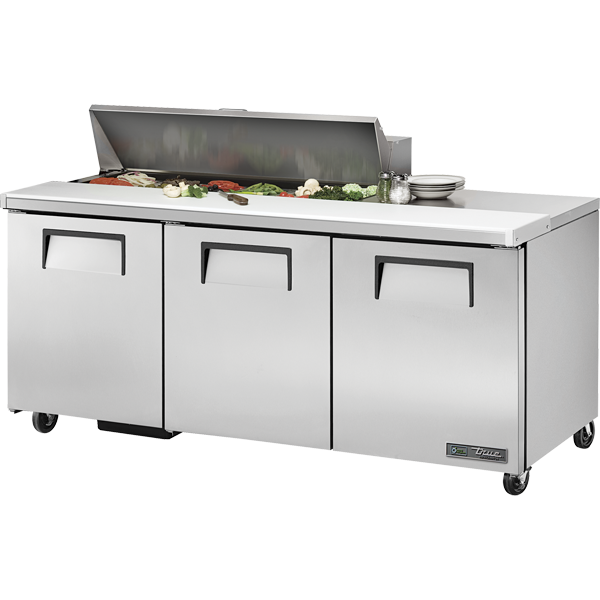

The True TSSU-72-12-HC is a 72-3/8" sandwich and salad unit built to keep a prep station moving through a full service. True's patented forced-air design holds both the pans on top and the cabinet below between 33°F to 41°F, so product in the rail stays as cold as product on the shelf and the top does not creep warm during a rush.
The patented removable stainless steel lid and hood are foam insulated, holding pan temperature during slow periods without cycling the compressor harder than it needs to.
Below the rail, 3 solid doors open onto adjustable PVC-coated wire shelving for backup stock, so a line cook can restock without leaving the station. The exterior is stainless steel front, top and ends over a clear-coated aluminum liner with a stainless floor and coved corners, and the condensing unit slides out from the back for service.
Product Details
- True® 72-3/8" sandwich and salad unit
- Patented forced-air design holds 33°F to 41°F in both food pans and cabinet interior
- Complies with ANSI/NSF-7 for open food product
- R290 hydrocarbon refrigerant — zero ODP, 0.02 GWP
- Self-contained capillary tube system, factory balanced with guided airflow
- Low-velocity, high-volume fan with sealed, self-lubricating motor
- Condensing unit accessed from the back on a slide-out mount
- Epoxy-coated evaporator resists corrosion
- 12 x 1/6-size pans (6-7/8" L x 6-1/4" W x 4" D); also accepts 6" deep pans supplied by others
- Removable cutting board — 11-3/4" D x 1/2" thick, full length, removable
- Patented removable stainless steel lid and hood, foam insulated
- 12" recessed door handles; self-closing doors with 90° stay-open feature
- Stainless steel front, top and ends; GalFan-coated steel back
- Clear-coated aluminum interior liner, stainless steel floor with coved corners
- High-density polyurethane insulation foamed in place (zero ODP, zero GWP)
- 3 solid doors with stainless exterior and aluminum liner
- One-piece magnetic gaskets, removable without tools
- 6 adjustable PVC-coated wire shelves; 4 at 21-9/16" L x 16" D, 2 at 23-1/2" L x 16" D
- Factory pre-wired with cord and NEMA 5-15P plug
Dimensions & Utilities
| Specification |
Detail |
| Cabinet Dimensions (W x D x H) |
72-3/8" W x 30-1/8" D x 36-3/4" H |
| Pan Capacity |
12 x 1/6-size pans (6-7/8" L x 6-1/4" W x 4" D); also accepts 6" deep pans supplied by others |
| Doors |
3 solid doors |
| Shelving |
6 adjustable PVC-coated wire shelves; 4 at 21-9/16" L x 16" D, 2 at 23-1/2" L x 16" D |
| Cutting Board |
11-3/4" D x 1/2" thick, full length, removable |
| Temperature Range |
33°F to 41°F |
| Electrical |
115V / 60 Hz / 1 Phase |
| Amps |
7.2 amps |
| Plug Type |
NEMA 5-15P (15 amp dedicated outlet recommended) |
| Refrigerant |
R290 Hydrocarbon (zero ODP / 0.02 GWP) |
| Cord Length |
7 ft. |
| Unit Weight |
445 lbs. |
Additional Product Information
-
Approvals & Certifications: Made in USA, cUL, ANSI/NSF-7 (Open), Natural Refrigerant (R290).
-
Optional Accessories: 6" standard or seismic/flanged legs, 2-1/2" castors, additional shelves, single or double overshelf, flat lid, sneezeguard, composite cutting board, pan dividers and factory-installed exterior digital temperature display are available. Upcharges and lead times may apply.
-
Optional Electrical: 230-240V/50Hz or 208-230V/60Hz available on most models. Upcharge and lead times may apply.
-
Installation Requirements: Requires a dedicated 15 amp, 115V circuit. Allow clearance at the rear for condensing unit access. Commercial installation only; not intended for home or residential use.
