Product Overview

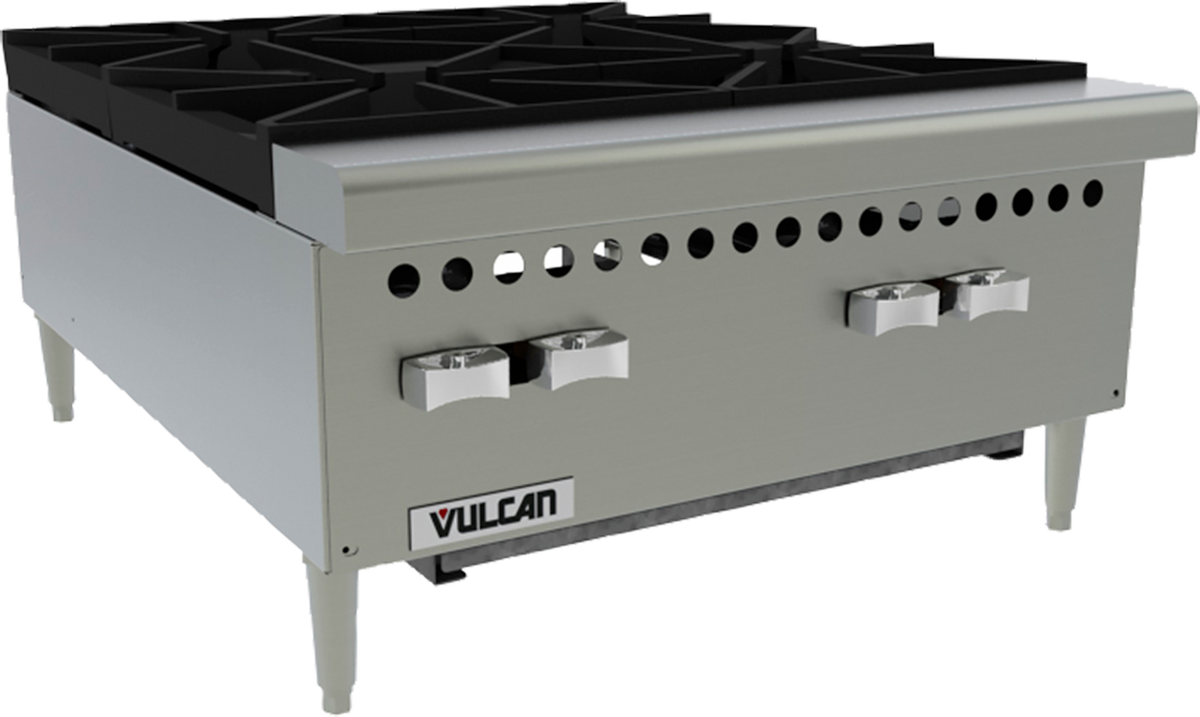

The Vulcan VCRH24-1 is a 24" countertop gas hot plate with 4 open burners rated 25,000 BTU/hr each, 100,000 BTU/hr total, from the Vulcan Core counterline.
A hot plate buys burner capacity without the oven underneath — the right answer when a kitchen needs more top space for sauce pans and stock pots but already has all the oven it needs, or when it sits on an equipment stand over refrigeration. Each burner has its own infinite heat control valve.
Burner heads lift off for cleaning and cast iron top grates take the weight of full stock pots. The front, sides and front top ledge are stainless steel, full-width front crumb trays pull out for cleanup, and the unit sits at a 13" cooking height on 4" adjustable legs. A convertible regulator is supplied for LP service.
Product Details
- Vulcan® Core series 24" countertop gas hot plate
- 4 open burners rated 25,000 BTU/hr each — 100,000 BTU/hr total
- Infinite heat control valve per burner
- Lift-off burner heads for cleaning
- Cast iron top grates
- Stainless steel front, sides and front top ledge
- Full-width front crumb trays
- 13" cooking height on 4" adjustable legs
- Standing pilot ignition — no electrical connection required
- Convertible regulator supplied for LP service
Dimensions & Utilities
| Specification |
Detail |
| Number of Burners |
4 open burners |
| BTU per Burner |
25,000 BTU/hr |
| Total Input |
100,000 BTU/hr |
| Grates |
Cast iron top grates |
| Overall Dimensions (W x D x H) |
24" W x 29.3" D x 13.3" H |
| Shipping Weight |
161 lb |
| Cooking Height |
13" on 4" adjustable legs |
| Installation Type |
Countertop |
| Gas Type |
Natural Gas (convertible regulator supplied for LP) |
| Ignition |
Standing pilot |
| Electrical |
None required |
Additional Product Information
-
Manufacturer: Vulcan (ITW Food Equipment Group)
-
Series: Vulcan Core
-
Model Number: VCRH24-1
-
Specification Sheet: Vulcan factory spec sheet
-
Warranty: One year limited parts and labor
-
Specification Source: Dimensions, weight and gas input taken from the Vulcan factory specification sheet for this model.
