Product Overview

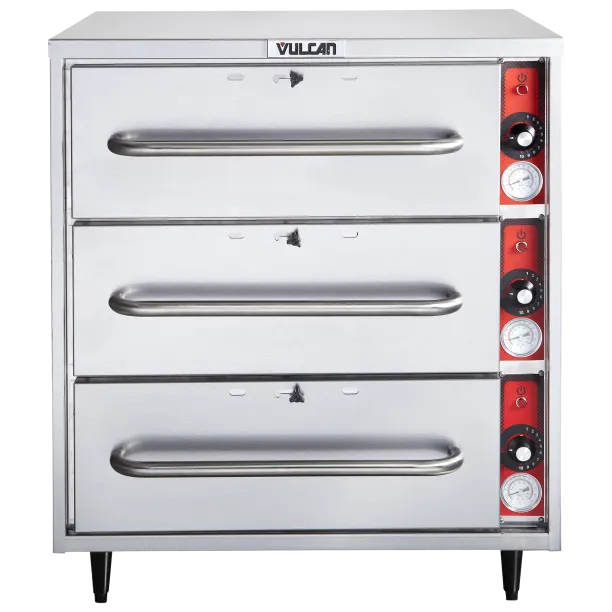

The Vulcan VW3S-1M0ZX is a standard electric drawer warmer with 3 drawers, drawing 1425 W on a standard 120V outlet.
A drawer warmer holds cooked product at serving temperature in a closed, humidity-controlled space rather than under a lamp. An adjustable sliding vent on each drawer sets how much moisture stays in — closed for rolls and buns that should stay soft, open for fried product that has to stay crisp. Each drawer has its own heater and thermostatic control, so different products can be held at different settings in the same cabinet.
The structural components are 100%% stainless steel and the drawers lift out for cleaning. Integrated drawer slides run on stainless steel rollers, the cabinet has 1" insulation in the sides and top, and a large thermometer reads at a glance. The drawer frame takes 1/3, 1/2 or full size pans. An optional trim ring is available for built-in installation.
Product Details
- Vulcan® standard electric drawer warmer, 3 drawers
- 100%% stainless steel structural components
- Separate heater and thermostatic control per drawer
- Removable drawers for easy cleaning
- Adjustable sliding vent for humidity control
- Fits 1/3, 1/2 or full size pans
- Integrated drawer slides with stainless steel rollers
- 1" insulation in sides and top
- Large, easy-to-read thermometer
- Electrical: 120V, 1 phase, 1425 W
- Lifetime warranty on heating elements and drawer rollers
Dimensions & Utilities
| Specification |
Detail |
| Number of Drawers |
3 |
| Pan Compatibility |
1/3, 1/2 or full size |
| Humidity Control |
Adjustable sliding vent |
| Temperature Control |
Separate thermostat per drawer |
| Electrical |
120V, 1 phase, 1425 W |
| Overall Dimensions (W x D x H) |
27-1/2" W x 23-1/2" D x 33-3/4" H |
| Shipping Weight |
180 lb |
| Insulation |
1" in sides and top |
Additional Product Information
-
Manufacturer: Vulcan (ITW Food Equipment Group)
-
Model Number: VW3S-1M0ZX
-
Specification Sheet: Vulcan factory spec sheet
-
Model Configuration: The trailing characters in this model number (for example -1M0ZN or -1E1ZN) are Vulcan's factory option code for this unit — control type, door or drawer configuration and voltage. Vulcan does not publish a public key to that code, so confirm the configuration against the Vulcan order guide before ordering.
-
Warranty: Lifetime warranty on heating elements and rollers; one year limited parts and labor
-
Specification Source: Dimensions and electrical taken from the Vulcan factory specification sheet for this model.
