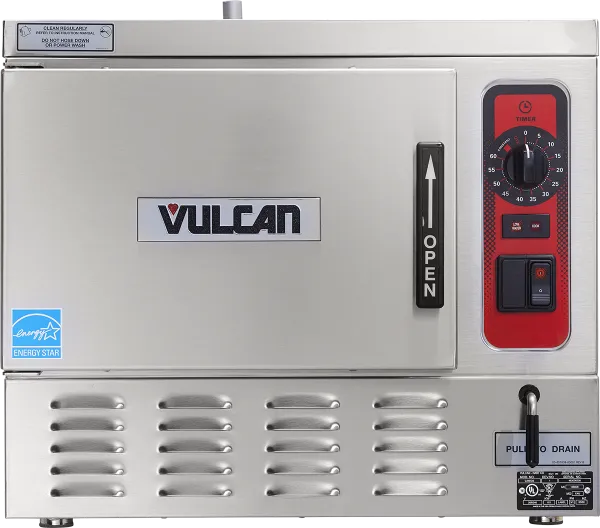

Product Overview
The Vulcan C24EO3-1 is a 3 pan boilerless electric countertop convection steamer rated 8 kW. It needs no water line and no drain connection.
Boilerless is the whole argument for this unit. A conventional steamer needs a plumbed water supply, a drain and regular descaling of a boiler; this one is filled by hand and emptied by hand, which means it can go anywhere there is an outlet and there is no boiler to scale up. For a kitchen in a leased space or one that steams in batches rather than all day, that removes both the install cost and the biggest maintenance item.
Construction is 14-gauge 301 stainless steel with internal metallic foil insulation and coved interior corners. A manual 60-minute timer with a buzzer runs the cycle, a constant steam setting handles longer items, and a low-water light and audible signal warn before the pan runs dry. The door is heavy duty with a positive-close latch. ENERGY STAR rated.
Product Details
- Vulcan® C24EO series 3 pan boilerless electric countertop convection steamer
- Boilerless, connectionless — no water or drain connection required
- Electrical: 8 kW
- Holds 3 full-size (12" x 20") pans
- 14-gauge 301 stainless steel construction
- Internal metallic foil insulation
- Manual 60-minute timer with buzzer
- Constant steam feature
- Low-water light and audible signal
- Heavy-duty door with positive-close latch
- Coved interior corners for cleaning
- ENERGY STAR rated
Dimensions & Utilities
| Specification |
Detail |
| Pan Capacity |
3 full-size (12" x 20") pans |
| Electrical |
8 kW |
| Water Connection |
None required |
| Timer |
60-minute manual timer with buzzer |
| Overall Dimensions (W x D x H) |
24" W x 33" D x 19-1/2" H |
| Shipping Weight |
140 lb |
| Installation Type |
Countertop |
| Construction |
Stainless steel |
Additional Product Information
-
Manufacturer: Vulcan (ITW Food Equipment Group)
-
Series: C24EO
-
Model Number: C24EO3-1
-
Specification Sheet: Vulcan factory spec sheet
-
Model Configuration: The trailing characters in this model number (for example -1M0ZN or -1E1ZN) are Vulcan's factory option code for this unit — control type, door or drawer configuration and voltage. Vulcan does not publish a public key to that code, so confirm the configuration against the Vulcan order guide before ordering.
-
Warranty: One year limited parts and labor
-
Specification Source: Dimensions and electrical taken from the Vulcan factory specification sheet for this model. Vulcan does not publish a shipping weight for the C24EO3 on that sheet, so the weight shown is from a dealer listing and should be confirmed with the freight quote.
