Product Overview

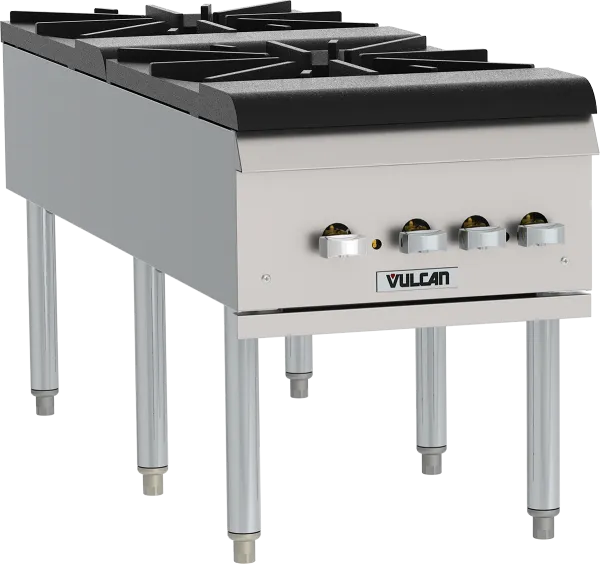

The Vulcan VSP200F-1 is a gas stock pot range with 2 cooking sections, each driven by two concentric ring-type burners rated 55,000 BTU/hr apiece for 110,000 BTU/hr per section and 220,000 BTU/hr total.
A stock pot range exists because a standard range top is the wrong height and the wrong burner shape for a 60-quart pot. The low deck means a cook can lift a full pot without reaching over a backriser, and the concentric ring burners spread flame across the whole pot bottom rather than driving a hot spot at the center that scorches a reducing stock.
Each section has two infinite heat control valves, so the cook can run the outer ring alone for a long simmer or both rings for a fast boil. Heavy-duty cast iron top grates take the load, the front and sides are stainless steel, and a heat shield keeps the controls cool. Gas connects at the rear through a 3/4" fitting with the pressure regulator supplied.
Product Details
- Vulcan® VSP series gas stock pot range
- 2 cooking sections
- Two concentric 55,000 BTU/hr ring-type burners per section
- 220,000 BTU/hr total input
- Two infinite heat control valves per section
- Heavy-duty cast iron top grates
- Stainless steel front and sides
- Heat shield keeps controls cool
- Standing pilot ignition system
- 3/4" rear gas connection with pressure regulator supplied
- Cutting board, condiment rail and plate rail accessories available
Dimensions & Utilities
| Specification |
Detail |
| Cooking Sections |
2 |
| Burners per Section |
Two concentric ring-type burners |
| BTU per Burner |
55,000 BTU/hr |
| Input per Section |
110,000 BTU/hr |
| Total Input |
220,000 BTU/hr |
| Grates |
Heavy-duty cast iron |
| Overall Dimensions (W x D x H) |
18" W x 49-1/2" D x 24" H |
| Shipping Weight |
298 lb |
| Gas Type |
Natural Gas |
| Gas Connection |
3/4" rear, pressure regulator supplied |
| Ignition |
Standing pilot |
| Electrical |
None required |
Additional Product Information
-
Manufacturer: Vulcan (ITW Food Equipment Group)
-
Series: Vulcan Core
-
Model Number: VSP200F-1
-
Specification Sheet: Vulcan factory spec sheet
-
Liquid Propane: Convertible to LP with a field conversion kit; the price sheet does not list a separate LP model number for this range.
-
Warranty: One year limited parts and labor
-
Specification Source: Dimensions, weight and gas input taken from the Vulcan factory specification sheet 86033583, which lists model VSP200F at 18" W x 49-1/2" D — the two sections are arranged front to back, not side by side. Confirm the footprint against the kitchen layout before ordering.
